1614761873 (=1614761823): ATLAS COPCO MD300 ROTOR

In high-demand industrial environments, maintaining the integrity of your compressed air treatment system is critical. The quality of your downstream air relies heavily on the efficiency of your desiccant dryers. Below is an exhaustive technical review, installation overview, and procurement guide for the Genuine Atlas Copco 1614761873 (=1614761823) MD300 Rotor, 1614761823 has been upgraded to 1614761873, designed to help procurement managers and maintenance engineers optimize their operations.

Technical Specifications

For precise engineering assessment and logistics planning, the certified technical data for this component is outlined in the table below:

Unboxing and Physical Verification

When managing high-value capital assets, visual and physical inspection is the first line of defense against substandard components. Our team has directly handled, inspected, and shipped the Atlas Copco 1614761873 (=1614761823) Rotor, confirming its absolute authenticity through a premium unboxing experience.

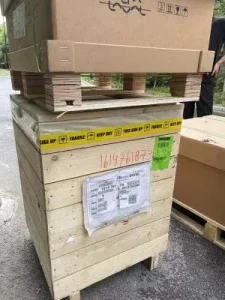

The rotor arrives housed inside a heavy-duty, factory-sealed Atlas Copco original export wooden crate, specifically engineered to withstand international freight stress and prevent moisture ingress. The exterior of the crate features distinctive factory labeling, including:

• Clear, high-contrast Atlas Copco branding and trademarks.
• The unique, proprietary 10-digit part number: 1614761873.
• Original shipping waybills explicitly traced back to the manufacturing hub in Sweden.
• Stamped “Made in Sweden” origin markers matching the official customs documentation.

Upon unboxing, the structural build quality of the rotor is immediately apparent. The desiccant matrix channels are perfectly uniform, free from any manufacturing defects, dust, or structural shifting, guaranteeing that the item is a factory-fresh, genuine component.

Functional Dynamics & Replacement Protocol

The Core Role of the MD300 Rotor

The MD300 rotary drum desiccant dryer utilizes a unique, continuously rotating drum structured with an assembly of channels coated with a highly efficient desiccant agent.

The rotor’s primary function is to eliminate moisture from compressed air by utilizing the heat of compression. It splits the cycle into two simultaneous phases: the drying sector (where hot, wet compressed air passes through the rotor channels and gives up its moisture to the desiccant) and the regeneration sector (where a portion of hot air desorbs the moisture from the desiccant, renewing its drying capacity).

Step-by-Step Replacement Framework

Replacing a worn or fouled rotor requires strict adherence to precision engineering steps to ensure proper sealing and drive alignment:

1. System Islation and Depressurization: Completely isolate the MD300 dryer from the compressed air network. Shut down the unit, lock out the power supply, and vent all residual internal pressure safely.
2. Housing Disassembly: Carefully remove the dryer outer cover plates and disconnect the instrumentation linkages. Unbolt the main vessel flange containing the drum assembly.
3. Drive System Disconnection: Disengage the drive belt or drive gear mechanism that connects the rotor shaft to the electric motor/compressor controller interface.
4. Extraction of the Old Rotor: Using appropriate overhead lifting equipment rated for over 60 kg, secure the worn rotor and lift it vertically out of the housing to prevent scratching the internal sealing surfaces.
5. Seal Inspection and Cleaning: Thoroughly clean the housing interior. Inspect the radial and axial seals. If worn, replace them alongside the rotor to prevent air bypassing.
6. Installation of the New Rotor (1614761873): Align the brand-new Sweden-originated rotor precisely into the central shaft support. Carefully lower it into place.
7. Reassembly and Calibration: Reconnect the drive mechanism. Manually rotate the drum to check for smooth clearance. Re-bolt the vessel flanges using correct cross-torque specifications, restore power, and run a test cycle to confirm proper dew-point performance.

The Atlas Copco Engineering Standard

Atlas Copco stands as a global pinnacle in compressed air technology, renowned for pioneering sustainable productivity solutions across heavy industries. By choosing factory-engineered components like the MD300 Rotor, you are investing in over a century of research and development.

Genuine air dryer parts ensure that the structural tolerances, aerodynamic backpressure profiles, and chemical compositions of the desiccant matrix match your dryer’s exact software configurations (such as the Elektronikon monitoring system). Installing genuine parts preserves your system’s energy efficiency profiles, protects downstream pneumatic instruments from liquid oil/water carrying over, and maintains factory-backed equipment warranties.

Your Dedicated Air Solution Partner

We are a professional one-stop supplier of Atlas Copco air compressor systems. With over 10 years of sales and maintenance experience, the company provides reliable and cost-effective pre-sales and after-sales solutions to users worldwide.

We are a dedicated supplier serving global industrial clients who value reliability and authenticity. We focus on delivering genuine, brand-new products together with reliable service, supporting customers in maintaining stable and efficient compressed air systems worldwide. Our ultimate mission is to become a globally trusted one-stop supplier of Atlas Copco air compressor systems, recognized for genuine products, professional service, and long-term partnership value.

Every single MD300 1614761873 (=1614761823) Rotor we distribute is officially sourced and routed through Atlas Copco (Shanghai) Trading Co., Ltd., guaranteeing a transparent, verifiable supply chain of brand-new, original components delivered directly to your plant facility.

FAQ

Q1: What causes a rotary drum dryer rotor to require replacement?
A1: The main factors include mechanical wear on the drive contact surfaces, severe oil contamination from upstream compressors blinding the desiccant pores, or structural fouling due to liquid water flooding from failed drain valves.

Q2: Can I wash or clean the desiccant matrix of the 1614761873 rotor if it becomes clogged?
A2: No. The desiccant structure cannot be washed with water or chemical solvents. Liquid contact will damage the integrity of the micro-channels and permanently degrade its moisture-adsorption capacity.

Q3: How do I verify that the rotor delivered to my factory is genuine?
A3: Check the heavy export wooden crate for the authentic 10-digit part number (1614761873), clear factory labels, matching Sweden customs shipping records, and verify that structural contours precisely match factory parameters.

Q4: Does the rotor package include the replacement radial seals?
A4: The 1614761873 part number covers the structural rotor drum assembly. It is highly recommended to cross-reference your parts manual or speak to our team to procure the matching seal kits simultaneously for complete maintenance.

Q5: What is the typical lead time and global shipping protocol for this item?
A5: Due to its specific size (56*56*72cm) and weight (57kg), the item is secured in export wooden housing and can be dispatched via expedited air freight or maritime cargo depending on your facility’s operational urgency.

Conclusion

Do not compromise your manufacturing plant’s air quality with unverified components. Protect your downstream machinery, prevent unscheduled production stoppages, and optimize your energy consumption profiles by choosing authenticity.

Contact us today to request a formal quotation, verify stock availability, or obtain technical consulting for your MD300 drying system. Let our decade of engineering excellence support your operations!
