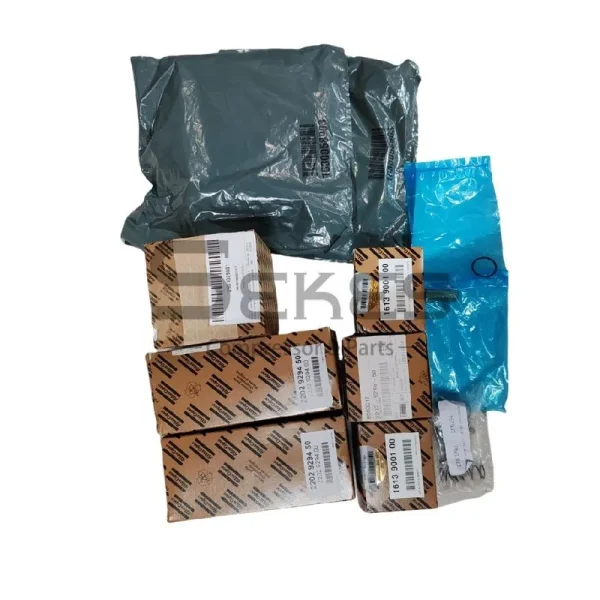

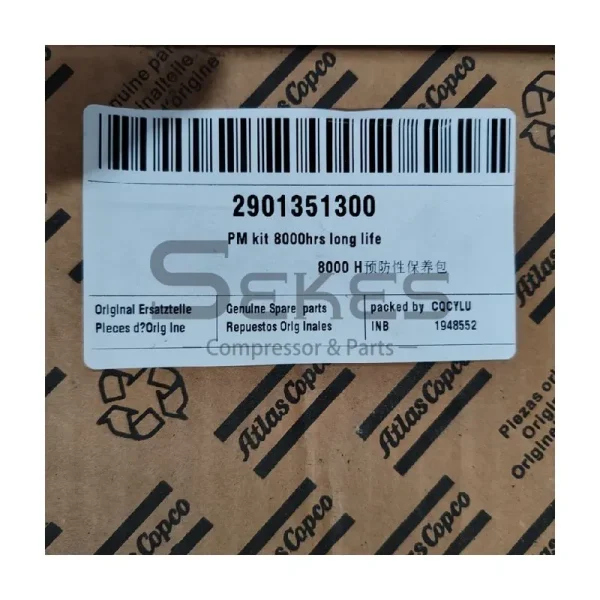

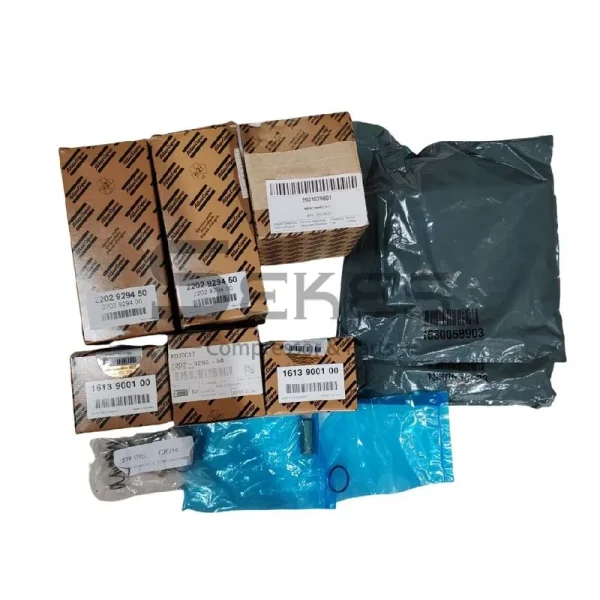

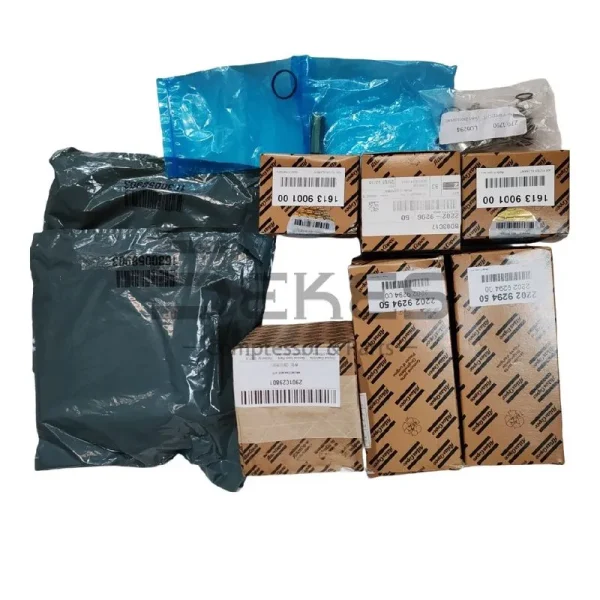

2901351300: ATLAS COPCO PREV MAIN 8000KIT

Sichuan Sykes Mechanical And Electrical Technology Co., Ltd. supplies the genuine Atlas Copco 2901351300 PREV.MAIN.8000KIT-8000OIL M.BL. As an authorized distributor of Atlas Copco products, we source this comprehensive maintenance kit directly from Atlas Copco (Shanghai) Trading Co., Ltd. , guaranteeing 100% new original quality.

Product Introduction

This industrial compressor service kit is specifically designed for stationary oil injected compressors and GA VSD (Variable Speed Drive) models. The kit includes the 8000OIL M.BL lubricant and all necessary components for efficient maintenance and repair. Engineers working in demanding industrial environments trust this kit to deliver 8000 hours of reliable service between major overhauls .

The PREV.MAIN.8000KIT bundles everything you need into one convenient package, reducing administration time and ensuring you have the correct genuine parts for your maintenance schedule .

Product Specifications

The table below lists the complete technical details for this maintenance kit.

Kit Components

Product Benefits

Extended 8000-Hour Service Interval: This comprehensive kit reduces your annual maintenance downtime by 50% compared to standard 4000-hour kits. One kit covers nearly a full year of continuous operation in 24/7 manufacturing environments .

All-in-One Convenience: The kit bundles every genuine component you need for a major service. This eliminates the risk of missing parts and reduces purchasing administration time significantly .

Genuine Quality Assurance: Every component meets Atlas Copco’s strict manufacturing standards. You receive 100% factory-sealed parts with full traceability, protecting your compressor investment from premature wear caused by substandard components.

Optimized for GA VSD Models: Atlas Copco engineers specifically designed this kit for GA VSD and stationary oil injected compressor platforms. Each component works in perfect harmony with your machine’s unique operating parameters.

Complete System Protection: The included filter/separator kit, thermal valve kit, non-return valve, and maintenance kit work together to protect your screw element, bearings, and separators from contamination and thermal stress.

Instructions & Precautions

Precautions

• Schedule this service at exactly 8000 hours of operation or as specified by your Elektronikon controller. Do not exceed this interval.
• Depressurize the system completely before beginning any maintenance work. Verify pressure gauges read zero.
• Allow the compressor to cool before handling components to prevent burns from hot oil or surfaces.
• Use only the genuine components included in this kit. Mixing with aftermarket parts voids the 8000-hour interval guarantee.
• Dispose of used oil, filters, and components according to local environmental regulations.

Step-by-Step Procedure

Prepare the Compressor

1. Run the compressor until it reaches normal operating temperature, then shut it down.
2. Switch off the main isolator and lock it in the OFF position.
3. Close the air outlet valve and depressurize the system completely.

Drain the Oil

1. Place a suitable collection container under the oil drain valve.
2. Open the drain valve and allow all old oil to drain completely.
3. Remove and replace the oil filter element with the new one from the MAINTENANCE KIT.

Replace the Filter/Separator

1. Remove the old FILTER/SEPARATOR KIT 8000HRS components.
2. Install the new separator element following the torque specifications in your compressor manual.
3. Ensure all gaskets and seals are properly seated.

Install the Thermal Kit & Non-Return Valve

1. Replace the KIT THERM+MPV C40 components as per the instruction sheet.
2. Install the new VALVE NON RET. (non-return valve) to prevent reverse airflow.

Refill and Test

1. Refill with the 8000OIL M.BL lubricant included in the kit.
2. Close all drain valves and inspection ports.
3. Start the compressor and check for leaks.
4. Reset the service timer on the Elektronikon controller to 8000 hours.

Frequently Asked Questions

Q1: Which compressor models is this 8000-hour kit compatible with?
A: This kit is specifically designed for GA VSD (Variable Speed Drive) models and stationary oil injected compressors in the GA series. Check your compressor’s serial number or consult your manual to confirm compatibility before ordering .

Q2: Does this kit include the 8000-hour lubricant?
A: Yes. The “8000OIL M.BL” in the kit name indicates that 8000-hour mineral-based lubricant is included. This is a complete service package with all fluids and components required for the major maintenance visit.

Q3: How do I verify this is a genuine product from Sichuan Sykes?
A: We source this kit strictly from Atlas Copco (Shanghai) Trading Co., Ltd. It arrives in factory-sealed Atlas Copco packaging with full traceability labels, batch numbers, and authenticity seals. You receive 100% genuine new stock.

Q4: Can I use this kit for a 4000-hour service instead of 8000 hours?
A: This kit is designed for the 8000-hour major maintenance interval. For standard 4000-hour services, Atlas Copco offers different service kits (PREV.MAIN.4000KIT). Using this kit prematurely would be cost-inefficient.

Q5: Does Sichuan Sykes provide technical support for installing this kit?
A: Yes. We provide remote technical support and detailed installation guidance. For complex installations, we can recommend certified service technicians in your region.

More Kits List

If you need other Atlas Copco air compressor service kits, we provide more models in the table below or you can submit your requirements to us directly.
