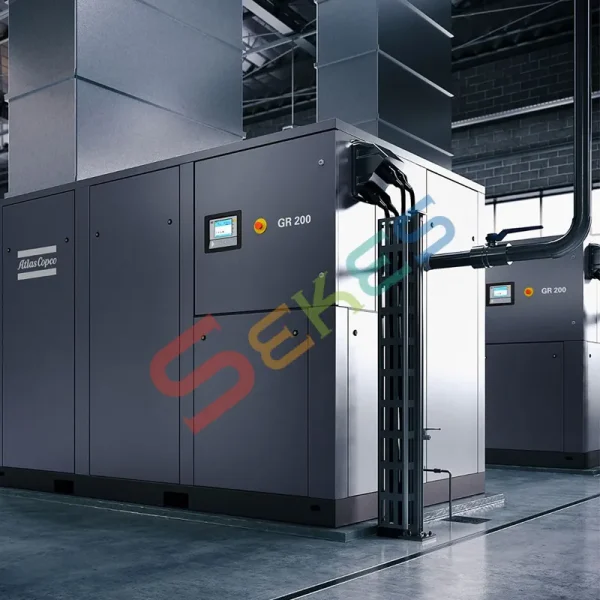

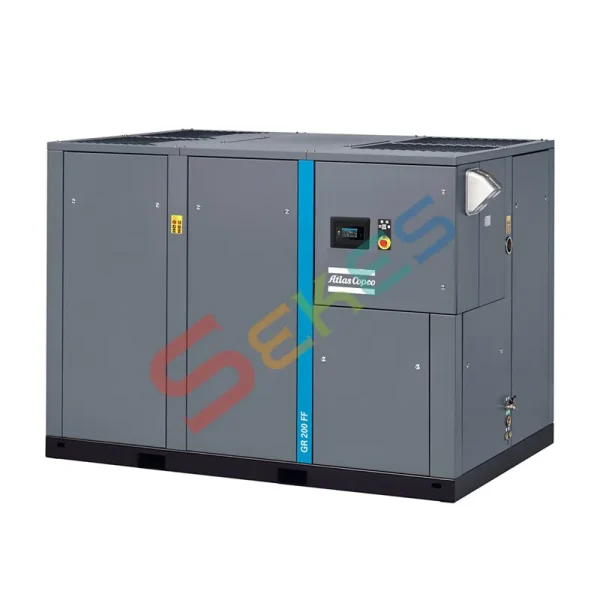

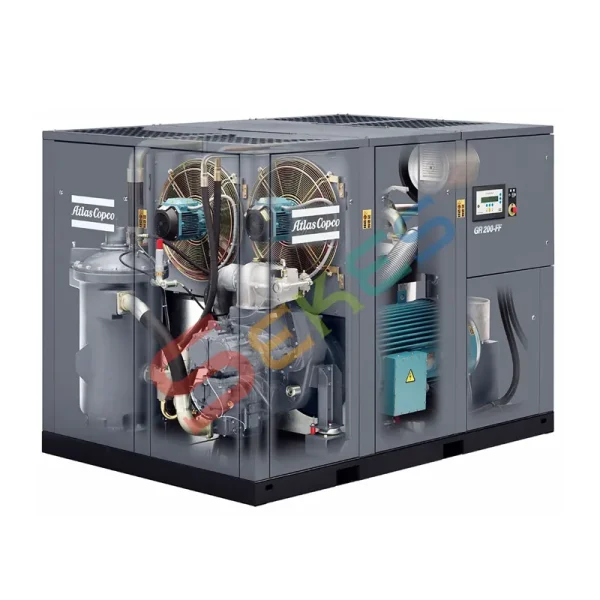

Atlas Copco GR 110-200 (FF) Oil-injected Air Compressors
$30,000.00
Atlas Copco GR 110-200 (FF) oil-injected air compressors provide a reliable air supply of up to 20 bar for high pressure applications in the toughest working conditions. Often used as mine compressor.
Working Pressure
14 bar(g) - 20 bar(g)
Capacity FAD
760 m³/h - 1,405 m³/h
Installed motor power
110 kW - 200 kW
Capacity FAD l/s
211 l/s - 390 l/s
Country of Origin
CN
HS Code
8414809090
Lead Time
30-45Days
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
Atlas Copco GR 110-200 (FF) Oil-injected Air Compressors: 2-stage high-pressure series
Contents
GR oil-injected 2-stage air compressors provide a reliable air supply of up to 20 bar for high-pressure applications in the toughest working conditions. The GR compressor is often used as a mine compressor
 |
 |
 |
| Highly efficient and reliable in tough working conditions
•The 2-stage compression element is proven to increase efficiency and reliability at high pressure. |
Highly efficient and reliable in tough working conditions
•The 2-stage compression element is proven to increase efficiency and reliability at high pressure. |
Protect your production equipment
•Available with integrated refrigerant dryer (full feature version). |
Why work with a GR 2-stage rotary screw air compressor?
An efficient solution
- Reduced operating costs

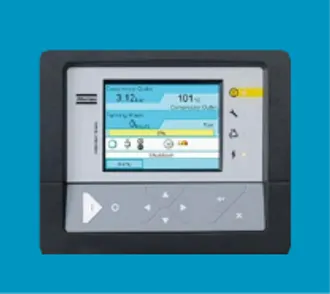

- Optimal control and efficiency with the Elektronikon® MK5
- Patented high-efficiency two-stage rotary screw compressors
A reliable solution
- Advanced design and high-quality materials
- Reduced environmental impact low noise levels
- Reliable operation in hot and dusty environments IP54 Motor, large oversized cooler blocks
Benefits

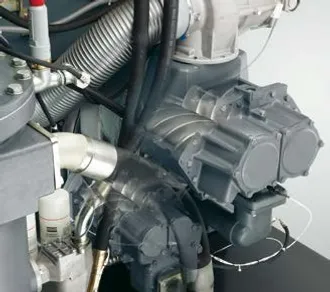

Highly efficient and reliable in tough working conditions
The 2-stage compression element is proven to increase efficiency and reliability at high pressure in the harsh conditions of the mining industry.

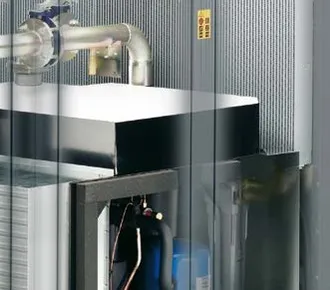

Protect your production equipment
Available with integrated refrigerant dryer and moisture separator. The 2 stage air compressor GR Full Feature (FF) provides clean dry air for all your applications.
Minimal maintenance
Fewer components and a simpler design compared to piston compressors drastically reduce your maintenance requirements.
Technical data
| Compressor type | Max. working pressure | Capacity FAD | Installed motor | Noise level | Weight | ||||
| pack full feature | pack / full feature | pack full feature | |||||||
| GR 110 2 -stage 20 bar | |||||||||
| 50 Hz | 20 bar(e)
290 psig |
19.75 bar(e)
286 psig |
211 l/s | 12.6 m3/min | 447 cfm | 110 kW
150 hp |
72 dB(A) | 3,140 kg
6,908 lb |
3,470 kg
7,634 lb |
| 60 Hz | 20 bar(e)
290 psig |
19.75 bar(e)
286 psig |
224 l/s | 13.4 m3/min | 475 cfm | 110 kW
150 hp |
72 dB(A) | 3,140 kg
6,908 lb |
3,470 kg
7,634 lb |
| GR 200 2-stage 20 bar | |||||||||
| 50 Hz | 20 bar(e)
290 psig |
19.75 bar(e)
286 psig |
385 l/s | 23.1 m3/min | 816 cfm | 200 kW
270 hp |
72 dB(A) | 3,547 kg
7,803 lb |
3,877 kg
8,529 lb |
| 60 Hz | 20 bar(e)
290 psig |
19.75 bar(e)
286 psig |
390 l/s | 23.4 m3/min | 827 cfm | 200 kW
270 hp |
78 dB(A) | 3,547 kg
7,803 lb |
3,877 kg
8,529 lb |
Unit performance
Measured according to ISO 1217, Annex C, Edition 4 (2009).
Reference conditions
•Absolute inlet pressure 1 bar (14.5 psig)
•Intake air temperature 20°C (68°F)
Noise level
A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB).
Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614.

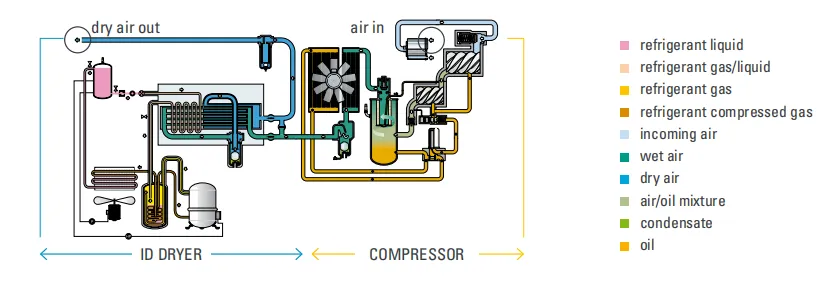

Flowchart

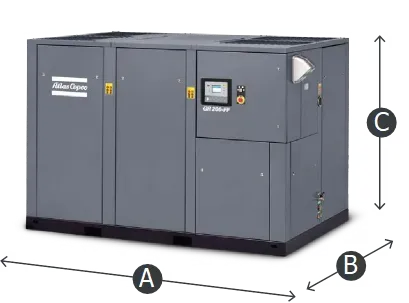

Dimensions GR 110-200 (FF)
| Dimensions GR 110-200 (FF) | ||
| A | B | C |
| 2,779 mm
109.4 inch |
1,886 mm
74.3 inch |
2,010 mm
79.2 inch |
Brochure
If you need Atlas Copco GR 110-200 (FF) Oil-injected Air Compressors brochure, please click the link below to view or download it.
| Weight | 3000.00 kg |
|---|---|
| Dimensions | 300 × 200 × 200 cm |
| Working Pressure | 14 bar(g) – 20 bar(g) |
| Capacity FAD | 760 m³/h – 1,405 m³/h |
| Installed motor power | 110 kW – 200 kW |
| Capacity FAD l/s | 211 l/s – 390 l/s |
| Country of Origin | CN |
| HS Code | 8414809090 |
| Lead Time | 30-45Days |
| MOQ | 1 Unit |
| Packaging | Wooden Crate |
| Product Quality | 100% Genuine, 100% Original, Brand New |
| Transaction Mode | CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA |
