Atlas Copco FX 1-22 Refrigerant Air Dryers

(1 条用户评价)

$2,000.00

Atlas Copco FX 1-22 refrigerant air dryers (1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,19.5,20,21,22) reliably, cost efficient and simply remove moisture from your compressed air system.

Enquiry
SKU： 7 分类： 标签： 品牌：
Maximum working pressure
14 bar - 16 bar
Electrical supply
230/1/50Hz; 230/1/60Hz; 400/3/50Hz; 400/3/60Hz
HS Code
8419399090
Lead Time
12-16 Weeks
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
确保安全支付

The Atlas Copco FX 1-22 Refrigerant Air Dryers are reliable, cost effective and easy to use solution. Available in 22 sizes (7-1236 l/s or 14-2516 cfm), the FX offers a pressure dew point as low as +3 °C/+37.4 °F for a wide range of applications and industries. The dryer can be used at different pressures and consumes hardly any processed compressed air.

Atlas Copco FX 1-22 Refrigerant Air Dryers

Atlas Copco FX 1-22 Refrigerant Air Dryers: quality air made easy

Pressure dew point precision

The FX comes in a wide range of sizes (7-1484 l/s or 14-3144 cfm) to offer a steady pressure dew point as low as +3 °C/+37.4 °F. Its easy to use digital display precision-measures and monitors the pressure dew point and dryer performance.

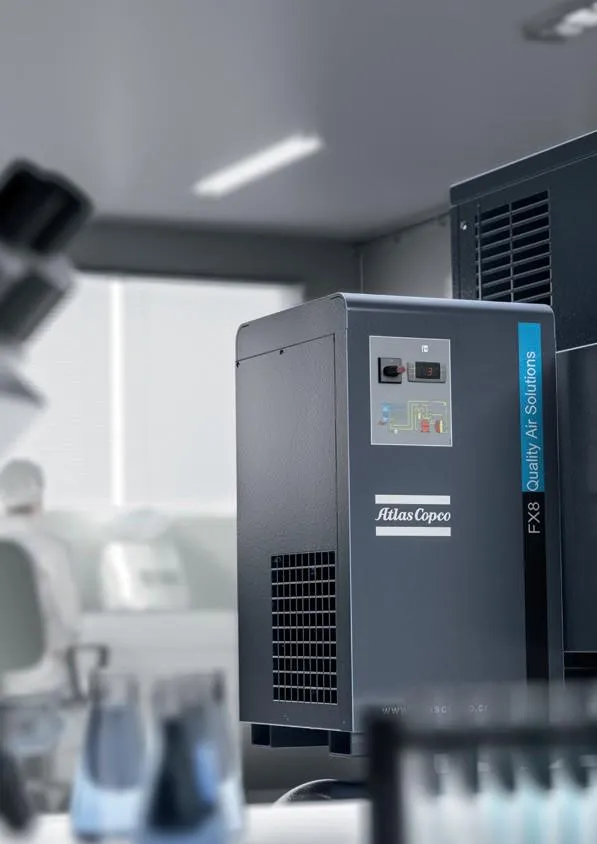

 FX 8
New: digital display

• Pressure dew point: exact measurement and visual monitoring.
• Status: refrigerant compressor and fan.
• Alarms: high/low pressure dew point and probe failure.
• Service warning.
Hot environments

High ambient temperatures can put your equipment to the test. The FX range offers several high temperature models that ensure dependable performance in conditions up to 46 °C/115 °F.
Significant cost savings

• Increased reliability and lifetime of tools and equipment.
• Reduced pipe work leaks and thus a lower energy bill.
• Less equipment breakdowns and operational interruptions.
• Minimal chance of product damage as a result of moisture carryover.
Sustainable refrigerant

The FX 8-16 comes with the more sustainable R410A refrigerant:
• -47% global warming potential (GWP).
• Zero ozone depletion potential (ODP).
• No chlorine.
• Only 0.1 °C/0.18 °F temperature glide reduces refrigerant and compression energy use, and allows for a constant pressure dew point.

Technical benefits and Significant cost savings

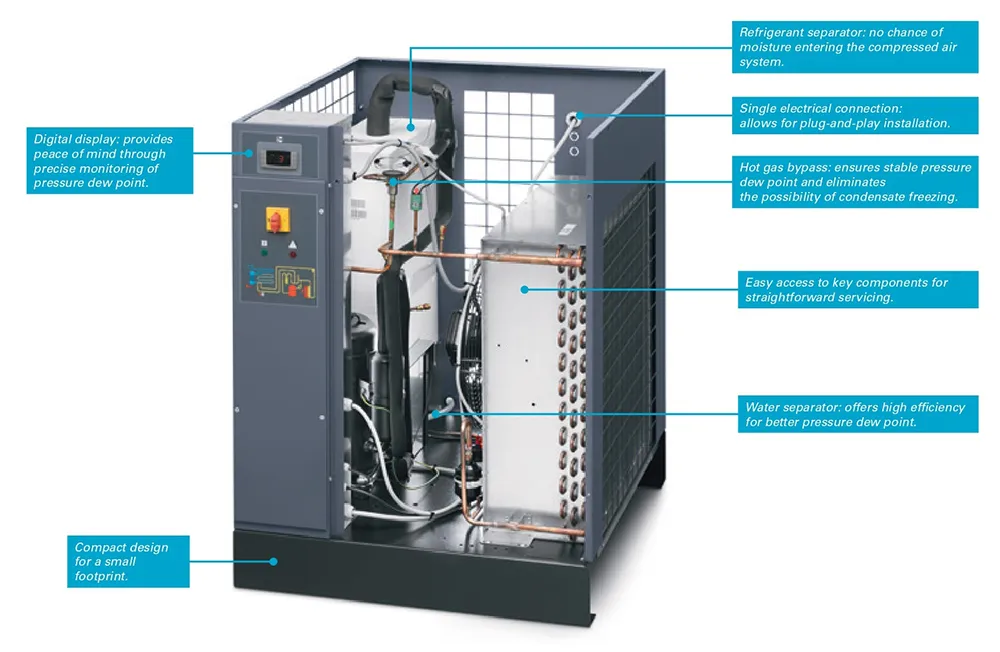

FX Solid performance

The FX industrial refrigerant air dryers deliver a strong performance with a steady pressure dew point with digital display. No freezing of condensed moisture and no risk of moisture entering your compressed air system
Proven reliability

With quality components, a robust design and effective control systems, the FX air dryers offer proven reliability.
Easy installation

The plug-and-play concept with a single electrical connection and self-regulating controls facilitates installation.
Minimal maintenance

The ergonomic design of the FX air dryers ensures fast access to key components. Combined with long service intervals, this ensures your maintenance costs are minimal.
Increased lifetime of equipment

• Reduced pipe work leaks and thus a lower energy bill.
• Less equipment breakdowns and operational interruptions.

Technical specifications

Atlas Copco FX 1-22 Refrigerant Air Dryers 50 Hz

Model Outlet pressure dew point +5℃/41℉ Outlet pressure dew point +3℃/37℉ Maximum working pressure Electrical supply Dimensions Weight Compressed air connections
Inlet capacity Pressure drop Inlet capacity Pressure drop Length Width Height
I/s cfm bar psi I/s cfm bar psi bar psi mm inch mm inch mm inch kg lb
FX 1 7 14 0.20 2.88 6 13 0.15 2.18 16 232 230/1/50Hz 500 19.69 350 13.78 484 19.06 19 42 3/4″ M
FX 2 12 24 0.33 4.79 10 21 0.25 3.63 16 232 230/1/50Hz 500 19.69 350 13.78 484 19.06 19 42 3/4″ M
FX 3 16 35 0.33 4.79 14 30 0.25 3.63 16 232 230/1/50Hz 500 19.69 350 13.78 484 19.06 20 44 3/4″ M
FX 4 23 49 0.33 4.79 20 42 0.25 3.63 16 232 230/1/50Hz 500 19.69 350 13.78 484 19.06 25 55 3/4″ M
FX 5 35 74 0.40 5.75 30 64 0.30 4.35 16 232 230/1/50Hz 500 19.69 350 13.78 484 19.06 27 60 3/4″ M
FX 6 45 95 0.42 6.14 39 83 0.32 4.64 14 189 230/1/50Hz 500 19.69 370 14.57 804 31.65 51 112 1″ F
FX 7 58 122 0.50 7.29 50 106 0.38 5.51 14 189 230/1/50Hz 500 19.69 370 14.57 804 31.65 51 112 1″ F
FX 8 69 146 0.24 3.45 60 127 0.18 2.61 14 189 230/1/50Hz 560 22.05 460 18.11 829 32.64 61 135 1 1/2″ F
FX 9 79 167 0.33 4.79 68 144 0.25 3.63 14 189 230/1/50Hz 560 22.05 460 18.11 829 32.64 68 150 1 1/2″ F
FX 10 100 211 0.24 3.45 87 184 0.18 2.61 14 189 230/1/50Hz 560 22.05 460 18.11 829 32.64 73 161 1 1/2″ F
FX 11 125 264 0.26 3.84 108 229 0.20 2.90 14 189 230/1/50Hz 560 22.05 580 22.83 939 36.97 90 198 1 1/2″ F
FX 12 148 313 0.36 5.18 128 271 0.27 3.92 14 189 230/1/50Hz 560 22.05 580 22.83 939 36.97 90 198 1 1/2″ F
FX 13 192 407 0.33 4.79 167 354 0.25 3.63 14 189 400/3/50Hz 898 35.35 735 28.94 1002 39.45 128 282 2″ F
FX 14 230 488 0.40 5.80 200 424 0.30 4.35 14 189 400/3/50Hz 898 35.35 735 28.94 1002 39.45 146 322 2″ F
FX 15 288 611 0.40 5.80 250 530 0.30 4.35 14 189 400/3/50Hz 898 35.35 735 28.94 1002 39.45 158 348 2″ F
FX 16 345 731 0.40 5.80 300 636 0.30 4.35 14 189 400/3/50Hz 898 35.35 735 28.94 1002 39.45 185 408 2″ F
FX 17 424 899 0.28 4.07 400 848 0.25 3.63 14 189 400/3/50Hz 1082 42.59 1020 40.15 1560 61.41 325 717 3″ F
FX 18 530 1124 0.34 4.89 500 1060 0.30 4.35 14 189 400/3/50Hz 1082 42.59 1020 40.15 1560 61.41 335 739 3″ F
FX 19 618 1310 0.39 5.70 583 1236 0.35 5.08 14 189 400/3/50Hz 1082 42.59 1020 40.15 1560 61.41 350 772 3″ F
FX 19.5 795 1685 0.28 4.07 750 1527 0.25 3.63 14 189 400/3/50Hz 1123 44.2 1020 40.15 1560 61.41 380 838 DN 125
FX 20 883 1872 0.34 4.89 833 1766 0.30 4.35 14 189 400/3/50Hz 2099 82.6 1020 40.15 1560 61.41 550 1213 DN 125
FX 21 1236 2516 0.28 4.07 1166 2374 0.25 3.63 14 189 400/3/50Hz 2099 82.6 1020 40.15 1560 61.41 600 1323 DN 125
FX 22 1484 3144 0.26 3.7 1400 2966 0.26 3.7 14 189 400/3/50Hz 2099 82.6 1020 40.15 1560 61.41 650 1433 DN 125

Optional filter selection

Model Outlet pressure dew point

+5 °C/41 °F

 Outlet pressure dew point

+3 °C/37 °F
Inlet capacity Filter Inlet capacity Filter
l/s l/s
FX 1 7 UD9+ 6 UD9+
FX 2 12 UD15+ 10 UD15+
FX 3 16 UD15+ 14 UD15+
FX 4 23 UD25+ 20 UD25+
FX 5 35 UD45+ 30 UD45+
FX 6 45 UD45+ 39 UD45+
FX 7 58 UD60+ 50 UD60+
FX 8 69 UD100+ 60 UD60+
FX 9 79 UD100+ 68 UD100+
FX 10 100 UD100+ 87 UD100+
FX 11 125 UD140+ 108 UD140+
FX 12 148 UD180+ 128 UD140+
FX 13 192 UD220+ 167 UD180+
FX 14 230 UD310+ 200 UD220+
FX 15 288 UD310+ 250 UD310+
FX 16 345 UD425+ 300 UD310+
FX 17 424 UD425+ 400 UD425+
FX 18 530 UD550+ 500 UD550+
FX 19 618 UD850+ 583 UD850+
FX 19.5 795 UD850+ 750 UD850+
FX 20 883 UD850+ 833 UD850+
FX 21 1236 UD1400+ 1166 UD1400+
FX 22 1484 UD1400+ 1800 UD1400+

Atlas Copco FX 1-22 Refrigerant Air Dryers 60 Hz

Model Outlet pressure dew point +5℃/41℉ Outlet pressure dew point +3℃/37℉ Maximum working pressure Electrical supply Dimensions Weight Compressed air connections
Inlet capacity Pressure drop Inlet capacity Pressure drop Length Width Height
I/s cfm bar psi I/s cfm bar psi bar psi mm inch mm inch mm inch kg lb
FX 1 7 14 0.20 2.88 6 13 0.15 2.18 16 232 115-230/1/60Hz 500 19.7 350 13.8 484 19.1 19 42 3/4″ NPT
FX 2 12 24 0.33 4.79 10 21 0.25 3.63 16 232 115-230/1/60Hz 500 19.7 350 13.8 484 19.1 19 42 3/4″ NPT
FX 3 16 35 0.33 4.79 14 30 0.25 3.63 16 232 115-230/1/60Hz 500 19.7 350 13.8 484 19.1 20 44 3/4″ NPT
FX 4 23 49 0.33 4.79 20 42 0.25 3.63 16 232 115-230/1/60Hz 500 19.7 350 13.8 484 19.1 25 55 3/4″ NPT
FX 5 35 74 0.40 5.75 30 64 0.30 4.35 16 232 115-230/1/60Hz 500 19.7 350 13.8 484 19.1 27 60 3/4″ NPT
FX 6 45 95 0.42 6.14 39 83 0.32 4.64 14 189 115-230/1/60Hz 500 19.7 370 14.6 804 31.7 51 112 1″ NPT
FX 7 58 122 0.50 7.29 50 106 0.38 5.51 14 189 115-230/1/60Hz 500 19.7 370 14.6 804 31.7 51 112 1″ NPT
FX 8 69 146 0.24 3.45 60 127 0.18 2.61 14 189 115-230/1/60Hz 560 22.0 460 18.1 829 32.6 61 135 1 1/2″ NPT
FX 9 79 167 0.33 4.79 68 144 0.25 3.63 14 189 115-230/1/60Hz 560 22.0 460 18.1 829 32.6 68 150 1 1/2″ NPT
FX 10 100 211 0.24 3.45 87 184 0.18 2.61 14 189 115-230/1/60Hz 560 22.0 460 18.1 829 32.6 73 161 1 1/2″ NPT
FX 11 125 264 0.26 3.84 108 229 0.20 2.90 14 189 230/1/60Hz 560 22.0 580 22.8 939 37.0 90 198 1 1/2″ NPT
FX 12 148 313 0.36 5.18 128 271 0.27 3.92 14 189 230/1/60Hz 560 22.0 580 22.8 939 37.0 90 198 1 1/2″ NPT
FX 13 192 407 0.26 3.77 167 354 0.20 2.90 14 189 460/3/60Hz 898 35.35 735 28.9 1002 36.4 173 381 2″ NPT
FX 14 230 488 0.33 4.79 200 424 0.25 3.63 14 189 460/3/60Hz 898 35.35 735 28.9 1002 36.4 178 392 2″ NPT
FX 15 288 611 0.46 6.67 250 530 0.35 5.08 14 189 460/3/60Hz 898 35.35 735 28.9 1002 36.4 183 404 2″ NPT
FX 16 345 731 0.46 6.67 300 636 0.35 5.08 14 189 460/3/60Hz 898 35.35 735 28.9 1002 36.4 183 404 2″ NPT
FX 17 424 899 0.28 4.07 400 848 0.25 3.63 14 189 460/3/60Hz 1082 42.59 1020 40.15 1560 61.41 325 717 3″ NPT
FX 18 530 1124 0.34 4.89 500 1060 0.30 4.35 14 189 460/3/60Hz 1082 42.59 1020 40.15 1560 61.41 335 739 3″ NPT
FX 19 618 1310 0.39 5.70 583 1236 0.35 5.08 14 189 460/3/60Hz 1082 42.59 1020 40.15 1560 61.41 350 772 3″ NPT
FX 19.5 795 1685 0.28 4.07 750 1527 0.25 3.63 14 189 460/3/60Hz 1123 44.2 1020 40.15 1560 61.41 380 838 DN 125
FX 20 883 1872 0.34 4.89 833 1766 0.30 4.35 14 189 460/3/60Hz 2099 82.6 1020 40.15 1560 61.41 550 1213 DN 125
FX 21 1187 2516 0.28 4.07 1120 2374 0.25 3.63 14 189 460/3/60Hz 2099 82.6 1020 40.15 1560 61.41 600 1323 DN 125
FX 22 1484 3144 0.26 3.7 1400 2966 0.26 3.7 14 189 460/3/60Hz 2099 82.6 1020 40.15 1560 61.41 650 1433 DN 125

Optional filter selection



Model

 Outlet pressure dew point

+5 °C/41 °F

 Outlet pressure dew point

+3 °C/37 °F
Inlet capacity Filter Inlet capacity Filter
cfm cfm
FX 1 14 UD9+ 13 UD9+
FX 2 24 UD15+ 21 UD15+
FX 3 35 UD15+ 30 UD15+
FX 4 49 UD25+ 42 UD25+
FX 5 74 UD45+ 64 UD45+
FX 6 95 UD45+ 83 UD45+
FX 7 122 UD60+ 106 UD60+
FX 8 146 UD100+ 127 UD60+
FX 9 167 UD100+ 144 UD100+
FX 10 211 UD100+ 184 UD100+
FX 11 264 UD140+ 229 UD140+
FX 12 313 UD180+ 271 UD140+
FX 13 407 UD220+ 354 UD180+
FX 14 488 UD310+ 424 UD220+
FX 15 611 UD310+ 530 UD310+
FX 16 731 UD425+ 636 UD310+
FX 17 899 UD425+ 848 UD425+
FX 18 1124 UD550+ 1060 UD550+
FX 19 1310 UD850+ 1236 UD850+
FX 19.5 1685 UD850+ 1527 UD850+
FX 20 1872 UD850+ 1766 UD850+
FX 21 2516 UD1400+ 2374 UD1400+
FX 22 3144 UD1400+ 3814 UD1400+

Brochure

If you need Atlas Copco FX 1-22 Refrigerant Air Dryers brochure, please click the link below to view or download it.

Atlas Copco FX 1-22 Refrigerant Air Dryers_FX1-22 antwerp leaflet EN 2935088047

重量 200.00 公斤
尺寸 100 × 50 × 100 厘米
Maximum working pressure

14 bar – 16 bar
Electrical supply

230/1/50Hz; 230/1/60Hz; 400/3/50Hz; 400/3/60Hz
HS Code

8419399090
Lead Time

12-16 Weeks
MOQ

1 Unit
Packaging

Wooden Crate
Product Quality

100% Genuine, 100% Original, Brand New
Transaction Mode

CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA

Atlas Copco FX 1-22 Refrigerant Air Dryers 有 1 个评价

  1. 5
    (1 条用户评价)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%
  2. Avatar of Anonymous_buyer

    Anonymous_buyer –

    Very satisfied with both the product and service.

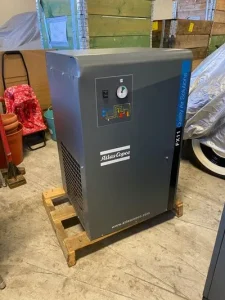

    We purchased the Atlas Copco FX 11 refrigerant air dryer from SEKES, and the entire experience was smooth. The dryer performs reliably with stable dew point control, and installation was straightforward. It runs quietly and requires minimal maintenance. SEKES provided fast delivery and professional support.
