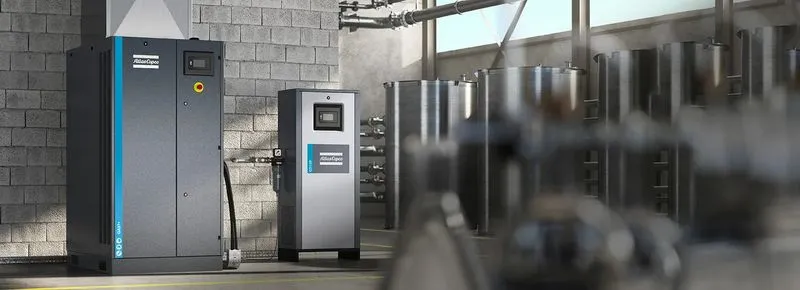

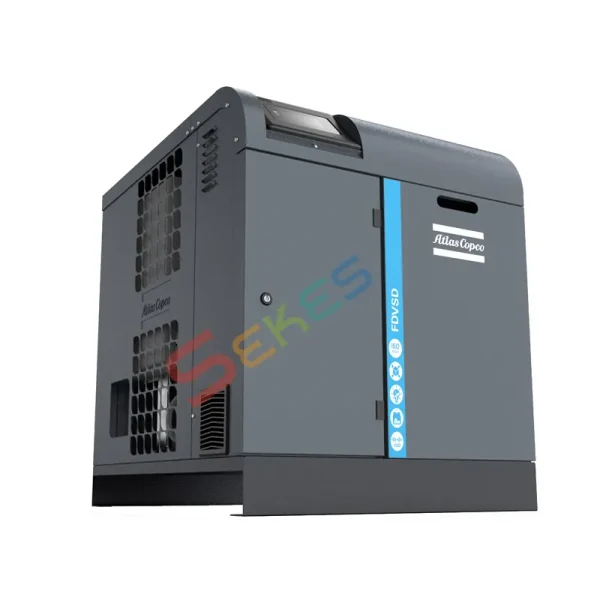

Atlas Copco FD 5-4000 VSD Refrigerant Air Dryers
$3,000.00
Atlas Copco FD 5-4000 VSD refrigerant air dryers (5,10,15,20,25,30,40,50,60,70,95,120,150,185,220,245,285,310,410,510,610,760,870,1010,4000) begin with the air-cooled FD 5. It has a capacity of 6 l/s or 13 cfm. The range goes up to the water-cooled FD 4000 VSD. This model has a capacity of 4000 l/s or 8480 cfm.
Maximum inlet conditions at full flow (ambient/inlet)
122/140 ℃ - 104/122 ℃
Inlet flow with a pressure dew point (PDP) of 3°C/37.4°F
6 l/s - 4000 l/s
Max. working pressure
13 bar - 16 bar
Power consumption
0.23 Kw - 13.2 Kw
Pressure drop at full flow
0.07 bar - 0.22 bar
Country of Origin
BE
HS Code
8419399090
Lead Time
12-16 Weeks
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
Atlas Copco FD 5-4000 VSD refrigerant air dryers remove moisture from compressed air before it enters the air network, preventing costly damage to air tools, instruments, mechanisms and piping.
Why dry your compressed air?
Contents

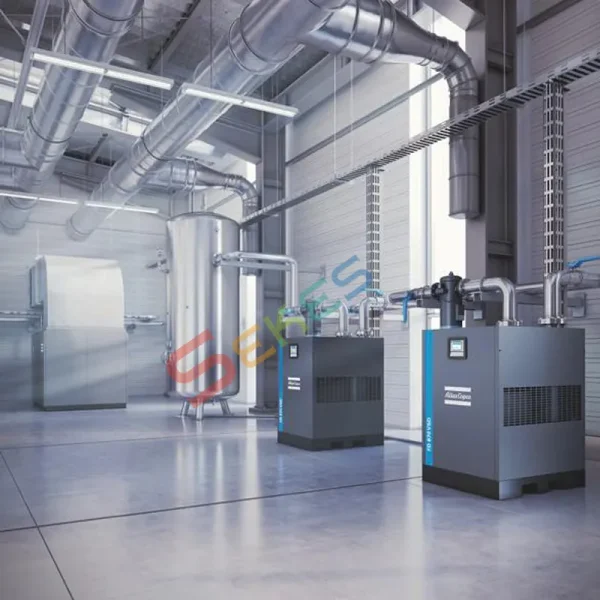

Compressed air is used in a wide variety of industrial applications. Wherever it is used, compressed air must be clean and dry. Containing solid, liquid and gaseous contaminants, untreated compressed air poses a substantial risk as it can damage your air system and end product. Moisture, one of the main components of untreated air can cause corrosion in pipe work, premature failure of pneumatic equipment, product spoilage and more. An air dryer is therefore essential to protect your systems and processes.
| Limit the risks of moisture

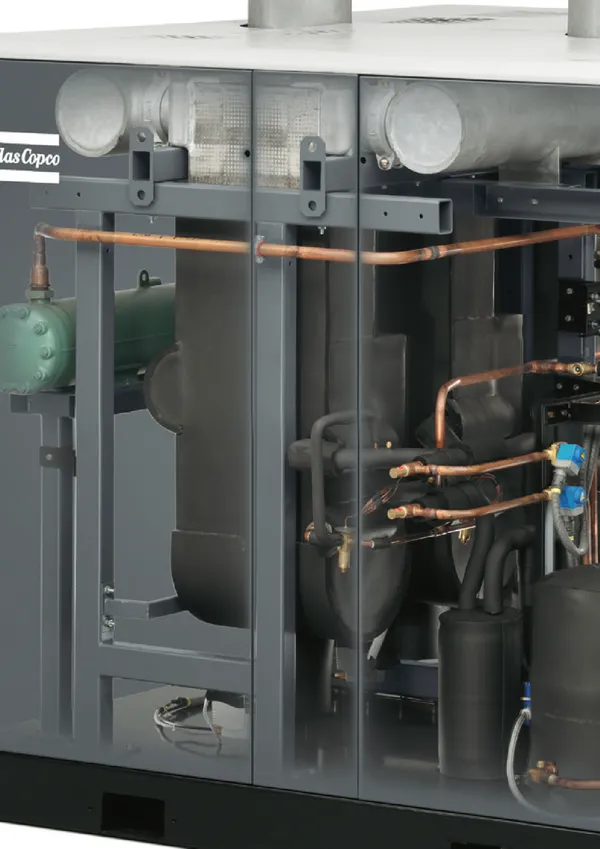

When the air that surrounds us is compressed, its water vapor and particle concentration increases dramatically. For example, compressing ambient room air to 7 bar(e)/100 psig increases the vapor content or humidity by a factor of around 8, and subsequent cooling forms liquid water. The amount of water depends on the specific application. Compressed air can actually contain three forms of water: liquid water, aerosol (mist) and vapor (gas). An efficient means of removing water from compressed air is therefore vital. Moisture in the air can be particularly problematic, causing: • Corrosion of compressed air piping. |
 |
 |
Protecting your reputation and production
Removing moisture from compressed air with a dewpoint as low as +3°C/+37.4°F, FD refrigerant dryers provide the clean, dry air you need to expand the life of your equipment and ensure the quality of your end product. Keeping your production up and running FD dryers are designed in-house, tested using the most stringent methods (at ambient temperatures up to 50°C/122°F) and manufactured on a very advanced production line. FD dryers meet or exceed the international standards for compressed air purity and are tested according to ISO 7183:2007. Driving down energy costs Our FD dryers incorporate a range of energy-saving features that will cut your carbon footprint and reduce costs. Incorporating unique heat exchanger technology and Saver Cycle Control, the FD ensures a low pressure drop of typically below 0.2 bar/2.9 psi and minimal energy consumption. The integrated Variable Speed Drive (VSD) technology offers extra energy savings by automatically tuning the energy input to the precise demand. Easy installation and long maintenanceintervals FD dryers have a small footprint thanks to an innovative all-in-one design. Delivered ready for use, installation is straightforward, minimizing costly production downtime. FD dryers come as all-in-one packages including an electronic no-loss drain and spin-on DD/PD filters (optional). Low environmental impact Fully compliant with ISO 14001 standards and Montreal Protocol regulations, FD dryers use CFC-free refrigerants (R134A, R410A, R404A) to prevent any damage to the earth’s ozone layer. FD dryers have an ozone depletion potential (ODP) of zero and are enclosed in a sound suppression canopy to reduce the noise levels, making FD dryers among the most environmentally friendly and quietest in their class. |

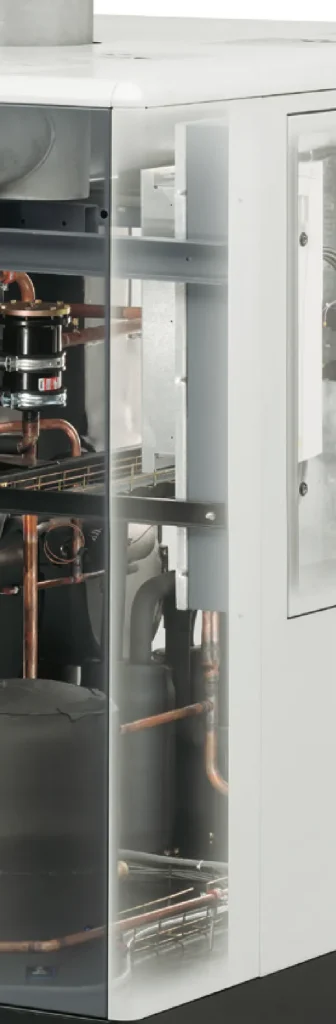

How does the FD dryer work?
A refrigerant dryer uses a refrigerant circuit and heat exchanger(s) to pre-cool air, refrigerate it to condense out moisture vapor, and then re-heat the air to prevent pipe sweating downstream. Refrigerant dryers can lead to a pressure dewpoint (PDP) as low as +3°C/+37.4°F for many applications where there is a need for dry air. They can be used at different pressures and consume no processed compressed air.

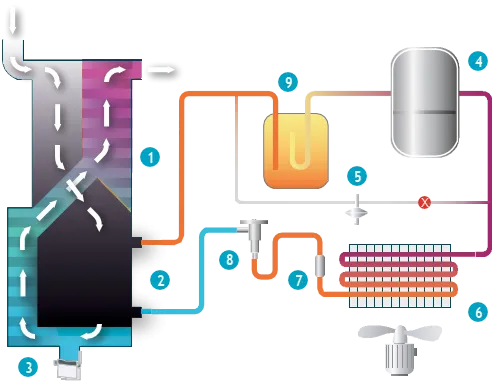

Typical working principle of direct expansion dryers
Air circuit①Air-to-air heat exchanger: Incoming air is cooled down by the outgoing dry cold air ②Air-to-refrigerant heat exchanger: The air is cooled to the required dewpoint by the refrigerant circuit. The water vapor condenses into water droplets ③Integrated water separator: The moisture is collected and evacuated by the electronic drain |
Refrigerant circuitThe refrigerant removes the heat from the compressed air and cools down to the desired dewpoint. ④Refrigerant compressor: Compresses the gaseous refrigerant to a higher pressure ⑤Regulation device: The hot gas bypass valve regulates the dryer to prevent freezing at lower load conditions ⑥Refrigerant condenser: Cools the refrigerant so that it changes from a gas to a liquid ⑦Refrigerant filter: Protects the expansion device from harmful particles ⑧Thermostatic expansion valve: The expansion process reduces the pressure and cools the refrigerant further ⑨Liquid separator: Ensures that only refrigerant gas enters the compressor |

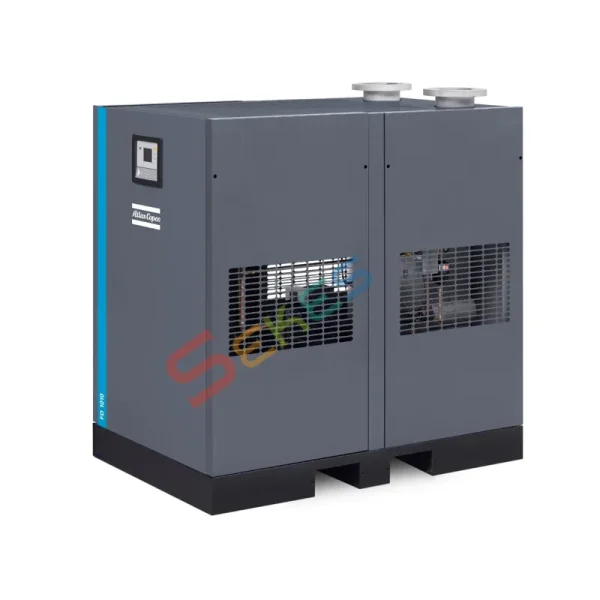

Atlas Copco’s FD refrigerant dryers
Based on years of experience in the industry, we have chosen to incorporate direct expansion technology with cycling, non-cycling and Variable Speed variants in its range.
 |

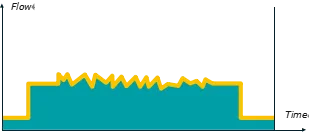

Direct expansion dryers without Saver Cycle Control (non-cycling)
•Applications: stable dewpoint, full load applications. |
 |

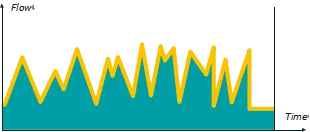

Direct expansion dryers with Saver Cycle Control (cycling)
•Applications: stable dewpoint, full load applications. |
 |
Variable speed dryers (VSD = Variable Speed Drive)
•Applications: varying temperatures, varying flows. |
Optimize your system
With the FD, Atlas Copco provides an all-in-one standard package incorporating the latest technology in a built-to-last design. To further optimize your FD’s performance or to simply tailor it to your specific production environment, optional features are available.
Scope of supply
Avoid risk of corrosion and system leaks, and ensure the effective safe disposal of untreated condensate – all within ISO 14001 standards.
| Cooling circuit | Integrated electronic no-loss drain |
| Electrical components | Elektronikon® control |
| Voltage-free contacts for remote alarm signal | |
| Digital pressure dewpoint readout | |
| Mechanical components | Counter-flow air-to-air heat exchanger |
| Counter-flow air-to-refrigerant heat exchanger |
Additional features & options
| General | High efficiency coalescing filters | ● (1) | ● (2) | ● (3) | – | – |
| Anchor pads | ✓ | ✓ | ● | ● | ● | |
| Motor | VSD control | – | – | – | ●(4) | ✓ |
| Saver Cycle Control | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Control panel protection to IP23 | ✓ | ✓ | ✓ | – | – | |
| Control panel protection to IP54 | ● | ● | ● | ✓ | ✓ | |
| Other options | Flow switch | – | ✓ | ✓ | ✓ | ✓ |
| Pressure dewpoint alarm | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Automatic hot gas bypass valve | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Automatic thermostatic valve | – | – | ✓ | ✓ | ✓ |
√ : Standard • : Optional – : Not available
(1) FD 5-50: spin-on filters – FD 60-95: integrated filters
(2) Integrated filters
(3) Spin-on filters
(4) Except FD 610
Refrigerant content 50Hz
| Dryer type | Dryer version | Refrigerant type | Refrigerant quantity | CO2equivalent |
| Air-cooled: 50Hz | ||||
| FD 310 | 40/50 | R410A | 2 | 4.2 |
| 46/56 | 2 | 4.2 | ||
| 50/60 | 2.2 | 4.6 | ||
| FD 410 | 40/50 | 2.7 | 5.6 | |
| 46/56 | 2.8 | 5.8 | ||
| 50/60 | 3.9 | 8.1 | ||
| FD 510 | 40/50 | 3.05 | 6.4 | |
| 46/56 | 3.4 | 7.1 | ||
| 50/60 | 3.05 | 6.4 | ||
| FD 610 | 40/50 | 2.9 | 6.1 | |
| FD 760 | 40/50 | 3.9 | 8.1 | |
| FD 760 VSD | 40/50 | 3.6 | 7.5 | |
| FD 870 | 40/50 | 4.4 | 9.2 | |
| FD 870 VSD | 40/50 | 4.2 | 8.8 | |
| FD 1010 | 40/50 | 5.5 | 11.5 | |
| FD 1010 VSD | 40/50 | 4.9 | 10.2 | |
| Water-cooled: 50Hz | ||||
| FD 310 | 50/60 | R410A | 1.85 | 3.9 |
| FD 410 | 50/60 | 2 | 4.2 | |
| FD 510 | 50/60 | 2.9 | 6.1 | |
| FD 610 | 40/50 | 3 | 6.3 | |
| FD 760 | 40/50 | 3.25 | 6.8 | |
| FD 760 VSD | 40/50 | 3.6 | 7.5 | |
| FD 870 | 40/50 | 4.7 | 9.8 | |
| FD 870 VSD | 40/50 | 5.9 | 12.3 | |
| FD 1010 | 40/50 | 4.5 | 9.4 | |
| FD 1010 VSD | 40/50 | 5.9 | 12.3 | |
| FD 4000 VSD | 40/50 | R404A | 18 | 70.6 |
Refrigerant content 60Hz
| Dryer type | Dryer version | Refrigerant type | Refrigerant quantity | CO2equivalent |
| Air-cooled: 60Hz | ||||
| FD 310 | 40/50 | R410A | 2 | 4.2 |
| 46/56 | 2 | 4.2 | ||
| 50/60 | 2.2 | 4.6 | ||
| FD 410 | 40/50 | 2.7 | 5.6 | |
| 46/56 | 2.8 | 5.8 | ||
| 50/60 | 3.9 | 8.1 | ||
| FD 510 | 40/50 | 3.05 | 6.4 | |
| 46/56 | 3.4 | 7.1 | ||
| 50/60 | 3.05 | 6.4 | ||
| FD 610 | 40/50 | 2.9 | 6.1 | |
| FD 760 | 40/50 | 3.9 | 8.1 | |
| FD 760 VSD | 40/50 | 3.6 | 7.5 | |
| FD 870 | 40/50 | 4.4 | 9.2 | |
| FD 870 VSD | 40/50 | 4.2 | 8.8 | |
| FD 1010 | 40/50 | 5.5 | 11.5 | |
| FD 1010 VSD | 40/50 | 4.9 | 10.2 | |
| Water-cooled: 60Hz | ||||
| FD 310 | 122/140 | R410A | 1.6 | 3.3 |
| FD 410 | 122/140 | 1.9 | 4 | |
| FD 510 | 122/140 | 2.8 | 5.8 | |
| FD 610 | 104/122 | 2.8 | 5.8 | |
| FD 760 | 104/122 | 3.1 | 6.5 | |
| FD 760 VSD | 104/122 | 3.6 | 7.5 | |
| FD 870 | 104/122 | 4.7 | 9.8 | |
| FD 870 VSD | 104/122 | 5.9 | 12.3 | |
| FD 1010 | 104/122 | 4.2 | 8.8 | |
| FD 1010 VSD | 104/122 | 5.9 | 12.3 | |
| FD 4000 VSD | 104/122 | R404A | 18 | 70.6 |
Technical specifications
Atlas Copco FD 5-4000 VSD Refrigerant Air Dryers 50Hz Technical specifications

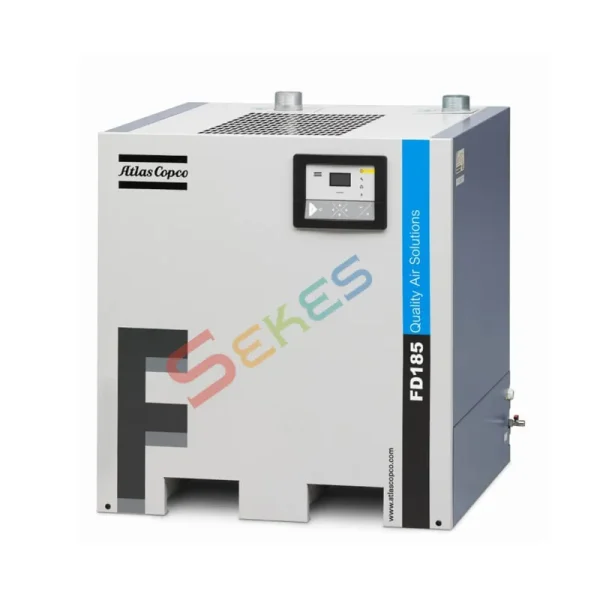

| Model | Maximum inlet cond. flow at full flow (amb. ent/inlet) | Inlet flow with a pressure drop (PDP) of 3°C/37.4°F | Pressure drop at full flow | Power consumption | Max. working pressure | Compressed air connections | Dimensions | Weight | ||||||||||
| °C | t/s | cfm | bar | pnl | kW | hp | bar | pnl | mm | in | mm | in | mm | in | kg | lb | ||
| Air-cooled 50 Hz | ||||||||||||||||||
| FD 5 | 50,60 | 6 | 13 | 0.07 | 1.02 | 0.2 | 0.27 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 27 | 60 |
| FD 10 | 50,60 | 10 | 21 | 0.11 | 1.6 | 0.2 | 0.27 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 27 | 60 |
| FD 15 | 50,60 | 15 | 32 | 0.12 | 1.75 | 0.33 | 0.45 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 32 | 70 |
| FD 20 | 50,60 | 20 | 42 | 0.12 | 1.75 | 0.41 | 0.56 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 34 | 75 |
| FD 25 | 50,60 | 25 | 53 | 0.17 | 2.47 | 0.41 | 0.56 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 34 | 75 |
| FD 30 | 50,60 | 30 | 64 | 0.25 | 3.64 | 0.41 | 0.56 | 16(1) | 233(1) | R 3A4 | 525.5 | 20.7 | 390 | 15.4 | 530 | 20.9 | 34 | 75 |
| FD 40 | 50,60 | 40 | 85 | 0.2 | 2.91 | 0.57 | 0.76 | 16(1) | 233(1) | R 1 | 716 | 28.2 | 389 | 15.3 | 679 | 26.8 | 57 | 125 |
| FD 50 | 50,60 | 50 | 106 | 0.2 | 2.91 | 0.54 | 0.72 | 16(1) | 233(1) | R 1 | 716 | 28.2 | 389 | 15.3 | 679 | 26.8 | 58 | 128 |
| FD 60 | 50,60 | 60 | 127 | 0.22 | 3.2 | 0.63 | 0.84 | 13 | 189 | R 1 | 795 | 28.2 | 482 | 19.0 | 804 | 31.7 | 80 | 176 |
| FD 70 | 50,60 | 70 | 148 | 0.22 | 3.2 | 0.87 | 1.17 | 13 | 189 | R 1 | 795 | 28.2 | 482 | 19.0 | 804 | 31.7 | 81 | 178 |
| FD 95 | 50,60 | 95 | 201 | 0.22 | 3.2 | 1.18 | 1.58 | 13 | 189 | R 1 | 795 | 28.2 | 482 | 19.0 | 804 | 31.7 | 87 | 192 |
| FD 120 | 50,60 | 120 | 254 | 0.11 | 1.6 | 1 | 1.3 | 14 | 203 | 1 1/2 | 1015 | 40 | 675 | 26.6 | 881 | 34.7 | 170 | 375 |
| FD 150 | 50,60 | 150 | 318 | 0.15 | 2.18 | 1 | 1.3 | 14 | 203 | 1 1/2 | 1015 | 40 | 675 | 26.6 | 881 | 34.7 | 170 | 375 |
| FD 185 | 50,60 | 185 | 392 | 0.22 | 3.19 | 1.4 | 1.9 | 14 | 203 | 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 37.1 | 185 | 408 |
| FD 220 | 50,60 | 220 | 466 | 0.12 | 1.74 | 1.9 | 2.5 | 14 | 203 | 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 37.1 | 197 | 434 |
| FD 245 | 50,60 | 245 | 519 | 0.18 | 2.61 | 2.1 | 2.8 | 14 | 203 | 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 37.1 | 197 | 434 |
| FD 285 | 50,60 | 285 | 604 | 0.22 | 3.19 | 2.2 | 2.9 | 14 | 203 | 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 37.1 | 197 | 434 |
| FD 310 | 40,50 | 310 | 657 | 0.23 | 3.3 | 2.8 | 3.75 | 14 | 203 | G 3 | 986 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 198 | 437 |
| FD 310 | 40,50 | 310 | 657 | 0.23 | 3.3 | 2.8 | 3.75 | 14 | 203 | G 3 | 986 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 200 | 441 |
| FD 310 | 50,60 | 310 | 657 | 0.23 | 3.3 | 2.9 | 3.89 | 14 | 203 | G 3 | 986 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 202 | 445 |
| FD 410 | 40,50 | 410 | 869 | 0.21 | 3 | 3 | 4.02 | 14 | 203 | G 3 | 986 | 38.8 | 850 | 33.5 | 1375 | 54.1 | 220 | 485 |
| FD 410 | 40,50 | 410 | 869 | 0.21 | 3 | 4.6 | 6.17 | 14 | 203 | G 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 240 | 529 |
| FD 410 | 50,60 | 410 | 869 | 0.21 | 3 | 4.8 | 6.44 | 14 | 203 | G 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 290 | 639 |
| FD 510 | 40,50 | 510 | 1081 | 0.20 | 2.9 | 4.5 | 6.03 | 14 | 203 | G 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 260 | 573 |
| FD 510 | 40,50 | 510 | 1081 | 0.20 | 2.9 | 6.4 | 8.58 | 14 | 203 | G 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 310 | 683 |
| FD 510 | 50,60 | 510 | 1081 | 0.20 | 2.9 | 6.9 | 9.25 | 14 | 203 | G 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 315 | 694 |
| FD 610 | 40,50 | 610 | 1293 | 0.17 | 2.47 | 4.8 | 6.4 | 14 | 203 | DIN100 | 1040 | 40.9 | 1060 | 41.7 | 1580 | 62.2 | 320 | 705 |
| FD 760 | 40,50 | 760 | 1611 | 0.17 | 2.47 | 5.3 | 7.1 | 14 | 203 | DIN100 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 760 VSD | 40,50 | 760 | 1611 | 0.17 | 2.47 | 5.3 | 7.1 | 14 | 203 | DIN100 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 870 | 40,50 | 870 | 1844 | 0.15 | 2.17 | 6.6 | 8.8 | 14 | 203 | DIN150 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 400 | 882 |
| FD 870 VSD | 40,50 | 870 | 1844 | 0.15 | 2.17 | 5.8 | 7.8 | 14 | 203 | DIN150 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 400 | 882 |
| FD 1010 | 40,50 | 1010 | 2141 | 0.17 | 2.47 | 7.4 | 9.9 | 14 | 203 | DIN150 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 460 | 1014 |
| FD 1010 VSD | 40,50 | 1010 | 2141 | 0.17 | 2.47 | 6.6 | 8.8 | 14 | 203 | DIN150 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 460 | 1014 |
| Water-cooled 50 Hz | ||||||||||||||||||
| FD 310 | 50,60 | 310 | 657 | 0.23 | 3.3 | 2 | 2.68 | 14 | 203 | G 3 | 986 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 180 | 397 |
| FD 410 | 50,60 | 410 | 869 | 0.21 | 3 | 2.4 | 3.22 | 14 | 203 | G 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 240 | 529 |
| FD 510 | 50,60 | 510 | 1081 | 0.2 | 2.9 | 4.1 | 5.5 | 14 | 203 | G 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 260 | 573 |
| FD 610 | 40,50 | 610 | 1293 | 0.17 | 2.47 | 3.1 | 4.2 | 14 | 203 | DIN100 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 350 | 772 |
| FD 760 | 40,50 | 760 | 1611 | 0.17 | 2.47 | 3.6 | 4.8 | 14 | 203 | DIN100 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 360 | 794 |
| FD 760 VSD | 40,50 | 760 | 1611 | 0.17 | 2.47 | 3.3 | 4.4 | 14 | 203 | DIN100 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 870 | 40,50 | 870 | 1844 | 0.15 | 2.17 | 4.5 | 6 | 14 | 203 | DIN150 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 370 | 816 |
| FD 870 VSD | 40,50 | 870 | 1844 | 0.15 | 2.17 | 4.2 | 5.6 | 14 | 203 | DIN150 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 1010 | 40,50 | 1010 | 2141 | 0.17 | 2.47 | 5.1 | 6.8 | 14 | 203 | DIN150 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 1010 VSD | 40,50 | 1010 | 2141 | 0.17 | 2.47 | 5.6 | 7.5 | 14 | 203 | DIN150 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 4000 VSD | 40,50 | 4000 | 8480 | 0.22 | 3.2 | 279 | 3741 | 13 | 189 | DIN250 | 2200 | 86.6 | 2300 | 90.6 | 1910 | 75.2 | 2010 | 4431 |
(1)20 bar(g)/290 psi(g) variant available
Reference conditions:
Performance data per ISO 7183:2007
•Ambient temperature: 25°C, 77°F
•Inlet compressed air temperature: 35°C, 95°F
•Inlet pressure: 7 bar(e)/102 psig
Refrigerant types:
FD 5-95: R134A
FD 120-1010: R410A
FD 4000 VSD: R404A
Atlas Copco FD 5-4000 VSD Refrigerant Air Dryers 60Hz Technical specifications
| Model | Maximum inlet cond. flow at full flow (ambi-ent/inlet) | Inlet flow with a pressure drop-off point (PDP) of 3°C/37.4°F | Pressure drop at full flow | Power consumption | Max. working pressure | Compressed air connections | Dimensions | Weight | ||||||||||
| °C | t/s | cfm | bar | pnl | kW | hp | bar | pnl | mm | in | mm | in | mm | in | kg | lb | ||
| Air-cooled 60 Hz | ||||||||||||||||||
| FD 5 | 122/140 | 6 | 13 | 0.07 | 1.02 | 0.23 | 0.31 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 27 | 60 |
| FD 10 | 122/140 | 10 | 21 | 0.11 | 1.6 | 0.23 | 0.31 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 27 | 60 |
| FD 15 | 122/140 | 15 | 32 | 0.12 | 1.75 | 0.34 | 0.46 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 32 | 70 |
| FD 20 | 122/140 | 20 | 42 | 0.12 | 1.75 | 0.53 | 0.71 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 34 | 75 |
| FD 25 | 122/140 | 25 | 53 | 0.17 | 2.47 | 0.53 | 0.71 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 34 | 75 |
| FD 30 | 122/140 | 30 | 64 | 0.25 | 3.64 | 0.53 | 0.71 | 16(1) | 233(1) | NPT 3/4 | 496 | 19.5 | 377 | 14.8 | 461 | 18.1 | 34 | 75 |
| FD 40 | 122/140 | 40 | 85 | 0.2 | 2.91 | 0.73 | 0.98 | 16(1) | 233(1) | NPT 1 | 688 | 27.1 | 389 | 15.3 | 604 | 23.8 | 57 | 125 |
| FD 50 | 122/140 | 50 | 106 | 0.2 | 2.91 | 0.79 | 1.06 | 16(1) | 233(1) | NPT 1 | 689 | 27.1 | 389 | 15.3 | 604 | 23.8 | 58 | 128 |
| FD 60 | 122/140 | 60 | 127 | 0.22 | 3.2 | 0.63 | 0.84 | 13 | 189 | NPT 1 | 726 | 28.6 | 482 | 19.0 | 804 | 317 | 80 | 176 |
| FD 70 | 122/140 | 70 | 148 | 0.22 | 3.2 | 0.87 | 1.17 | 13 | 189 | NPT 1 | 726 | 28.6 | 482 | 19.0 | 804 | 317 | 81 | 178 |
| FD 95 | 122/140 | 95 | 201 | 0.22 | 3.2 | 1.18 | 1.58 | 13 | 189 | NPT 1 | 726 | 28.6 | 482 | 19.0 | 804 | 317 | 87 | 192 |
| FD 120 | 122/140 | 120 | 254.4 | 0.11 | 1.6 | 1.73 | 2.3 | 14 | 203 | NPT 1 1/2 | 836 | 32.9 | 661 | 26.0 | 802 | 316 | 170 | 375 |
| FD 150 | 122/140 | 140 | 296.8 | 0.14 | 2.03 | 2.35 | 3.2 | 14 | 203 | NPT 1 1/2 | 836 | 32.9 | 661 | 26.0 | 802 | 316 | 170 | 375 |
| FD 185 | 122/140 | 170 | 360.4 | 0.22 | 3.19 | 2.32 | 3.1 | 14 | 203 | NPT 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 371 | 185 | 408 |
| FD 220 | 122/140 | 220 | 466.4 | 0.12 | 1.74 | 2.58 | 3.5 | 14 | 203 | NPT 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 371 | 197 | 434 |
| FD 245 | 122/140 | 230 | 487.6 | 0.18 | 2.61 | 2.85 | 3.8 | 14 | 203 | NPT 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 371 | 197 | 434 |
| FD 285 | 122/140 | 285 | 604.2 | 0.22 | 3.19 | 3.09 | 4.1 | 14 | 203 | NPT 2 1/2 | 1024 | 40.3 | 816 | 32.1 | 943 | 371 | 197 | 434 |
| FD 310 | 104/122 | 310 | 657 | 0.23 | 3.3 | 4.3 | 5.77 | 14 | 203 | NPT 3 | 966 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 198 | 437 |
| FD 310 | 115/133 | 310 | 657 | 0.23 | 3.3 | 4.6 | 6.17 | 14 | 203 | NPT 3 | 966 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 200 | 441 |
| FD 310 | 122/140 | 310 | 657 | 0.23 | 3.3 | 4.6 | 6.17 | 14 | 203 | NPT 3 | 966 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 202 | 445 |
| FD 410 | 104/122 | 410 | 869 | 0.21 | 3 | 4.5 | 6.03 | 14 | 203 | NPT 3 | 966 | 38.8 | 850 | 33.5 | 1375 | 54.1 | 220 | 485 |
| FD 410 | 115/133 | 410 | 869 | 0.21 | 3 | 6.1 | 8.18 | 14 | 203 | NPT 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 240 | 529 |
| FD 410 | 122/140 | 410 | 869 | 0.21 | 3 | 7.3 | 9.79 | 14 | 203 | NPT 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 290 | 639 |
| FD 510 | 104/122 | 510 | 1081 | 0.2 | 2.9 | 7.3 | 9.79 | 14 | 203 | NPT 3 | 1250 | 49.2 | 850 | 33.5 | 1375 | 54.1 | 260 | 573 |
| FD 510 | 115/133 | 510 | 1081 | 0.2 | 2.9 | 9.1 | 12.2 | 14 | 203 | NPT 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 310 | 683 |
| FD 510 | 122/140 | 510 | 1081 | 0.2 | 2.9 | 10.4 | 13.95 | 14 | 203 | NPT 3 | 1525 | 60 | 850 | 33.5 | 1375 | 54.1 | 315 | 694 |
| FD 610 | 104/122 | 610 | 1293 | 0.17 | 2.47 | 7.6 | 10.2 | 14 | 203 | ANSI 4 | 1040 | 40.9 | 1060 | 41.7 | 1580 | 62.2 | 320 | 705 |
| FD 760 | 104/122 | 760 | 1611 | 0.17 | 2.47 | 8.1 | 10.9 | 14 | 203 | ANSI 4 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 760 VSD | 104/122 | 760 | 1611 | 0.17 | 2.47 | 9.1 | 12.2 | 14 | 203 | ANSI 4 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 870 | 104/122 | 870 | 1844 | 0.15 | 2.17 | 10.2 | 13.7 | 14 | 203 | ANSI 6 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 400 | 882 |
| FD 870 VSD | 104/122 | 870 | 1844 | 0.15 | 2.17 | 11.1 | 14.9 | 14 | 203 | ANSI 6 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 450 | 992 |
| FD 1010 | 104/122 | 1010 | 2141 | 0.17 | 2.47 | 11.9 | 16 | 14 | 203 | ANSI 6 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 460 | 1014 |
| FD 1010 VSD | 104/122 | 1010 | 2141 | 0.17 | 2.47 | 11.4 | 15.3 | 14 | 203 | ANSI 6 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 460 | 1014 |
| Water-cooled 60 Hz | ||||||||||||||||||
| FD 310 | 122/140 | 310 | 657 | 0.23 | 3.3 | 2.5 | 3.35 | 14 | 203 | NPT 3 | 986 | 38.8 | 850 | 33.5 | 1190 | 46.9 | 180 | 397 |
| FD 410 | 122/140 | 410 | 869 | 0.21 | 3.0 | 3.2 | 4.29 | 14 | 203 | NPT 3 | 1525 | 60.0 | 850 | 33.5 | 1375 | 54.1 | 240 | 529 |
| FD 510 | 122/140 | 510 | 1081 | 0.20 | 2.9 | 5.0 | 6.71 | 14 | 203 | NPT 3 | 1525 | 60.0 | 850 | 33.5 | 1375 | 54.1 | 260 | 573 |
| FD 610 | 104/122 | 610 | 1293 | 0.17 | 2.47 | 3.9 | 5.2 | 14 | 203 | ANSI 4 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 350 | 772 |
| FD 760 | 104/122 | 760 | 1611 | 0.17 | 2.47 | 4.5 | 6 | 14 | 203 | ANSI 4 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 360 | 794 |
| FD 760 VSD | 104/122 | 760 | 1611 | 0.17 | 2.47 | 4.3 | 5.8 | 14 | 203 | ANSI 4 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 870 | 104/122 | 870 | 1844 | 0.15 | 2.17 | 5.8 | 7.8 | 14 | 203 | ANSI 6 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 370 | 816 |
| FD 870 VSD | 104/122 | 870 | 1844 | 0.15 | 2.17 | 5.6 | 7.5 | 14 | 203 | ANSI 6 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 1010 | 104/122 | 1010 | 2141 | 0.17 | 2.47 | 6.2 | 8.3 | 14 | 203 | ANSI 6 | 1245 | 49 | 1060 | 41.7 | 1580 | 62.2 | 380 | 838 |
| FD 1010 VSD | 104/122 | 1010 | 2141 | 0.17 | 2.47 | 6.1 | 8.2 | 14 | 203 | ANSI 6 | 1580 | 62.2 | 1060 | 41.7 | 1580 | 62.2 | 410 | 904 |
| FD 4000 VSD | 104/122 | 4000 | 8480 | 0.22 | 3.2 | 13.2 | 17.7 | 13 | 189 | ANSI 10 | 2200 | 86.6 | 2300 | 90.6 | 1910 | 75.2 | 2010 | 4431 |
(1)20 bar(g)/290 psi(g) variant available
Reference conditions:
•Ambient temperature: 38°C, 100°F
•Inlet compressed air temperature: 38°C, 100°F
•Inlet pressure: 7 bar(e)/102 psig
Refrigerant types:
FD 5-95: R134A
FD 120-1010: R410A
FD 4000 VSD: R404A
Brochure
If you need Atlas Copco FD 5-4000 VSD refrigerant air dryers brochure, please click the link below to view or download it.
Atlas Copco FD 5-4000 Refrigerant Air Dryers_FD series leaflet EN Antwerp 2935058212
| Weight | 200.00 kg |
|---|---|
| Dimensions | 100 × 40 × 80 cm |
| Maximum inlet conditions at full flow (ambient/inlet) | 122/140 ℃ – 104/122 ℃ |
| Inlet flow with a pressure dew point (PDP) of 3°C/37.4°F | 6 l/s – 4000 l/s |
| Max. working pressure | 13 bar – 16 bar |
| Power consumption | 0.23 Kw – 13.2 Kw |
| Pressure drop at full flow | 0.07 bar – 0.22 bar |
| Country of Origin | BE |
| HS Code | 8419399090 |
| Lead Time | 12-16 Weeks |
| MOQ | 1 Unit |
| Packaging | Wooden Crate |
| Product Quality | 100% Genuine, 100% Original, Brand New |
| Transaction Mode | CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA |
1 review for Atlas Copco FD 5-4000 VSD Refrigerant Air Dryers
Add a review
Anonymous_buyer –
A great addition to our compressed air setup.
The Atlas Copco FD 185 air dryer from Sekes exceeded our expectations. It delivers consistent performance and keeps moisture under control effectively. The build quality is solid, and installation was straightforward. We’ve seen reduced downtime and improved system efficiency since upgrading to this model.
