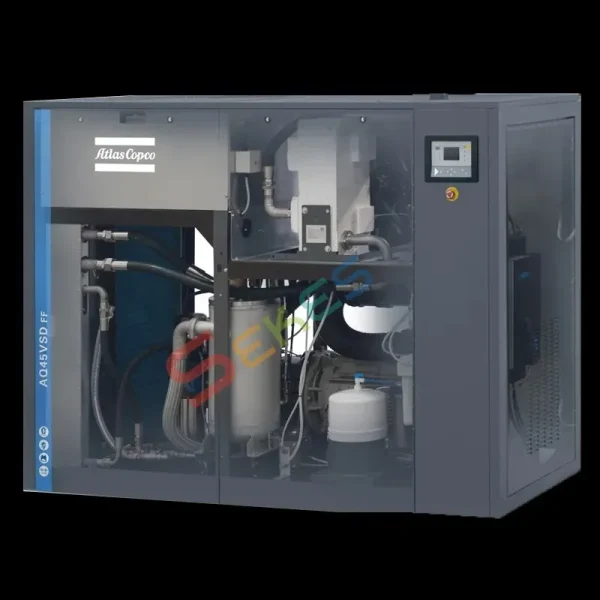

Atlas Copco AQ 45 VSD FF Compressor Internal

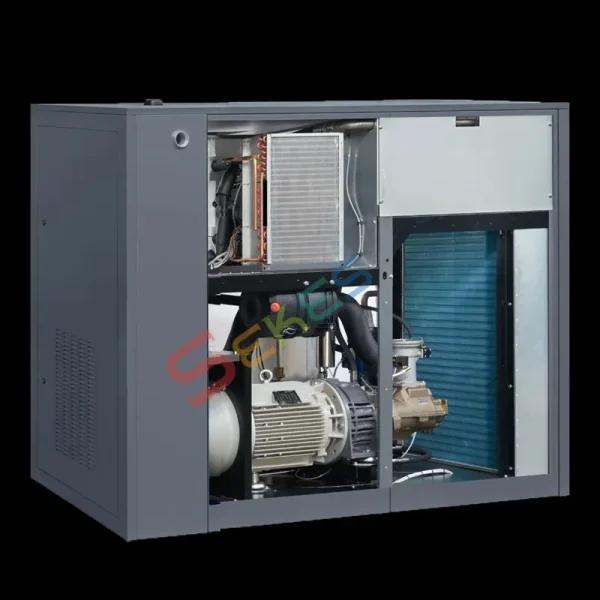

Atlas Copco AQ 45 VSD FF Compressor Components

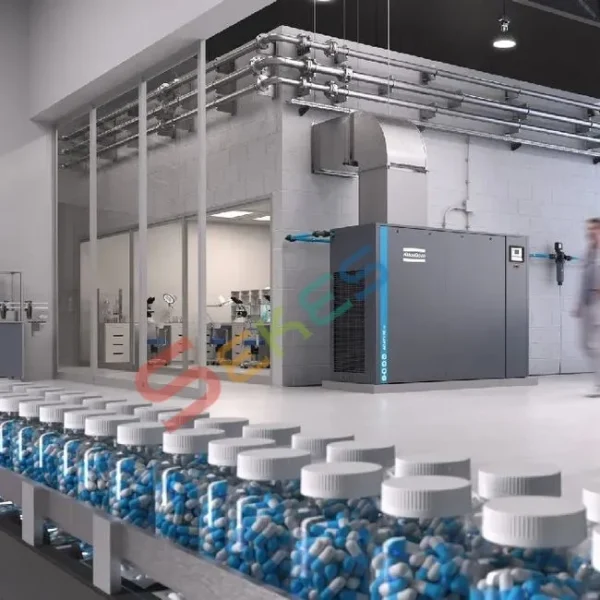

Atlas Copco AQ 15-55 VSD AQ 30-55 Oil-free Compressors Application
  1. Atlas Copco AQ 15-55 VSDAQ 30-55 Oil-free Compressors Index
  2. Atlas Copco AQ 45 VSD FF
  3. Atlas Copco AQ 55 VSD FF Compressor
  4. Atlas Copco AQ 45 VSD FF Compressor Internal
  5. Atlas Copco AQ 45 VSD FF Compressor Components
  6. Atlas Copco AQ 15-55 VSD AQ 30-55 Oil-free Compressors Application

Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors

(1 customer review)

$5,000.00

The Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors (AQ15,AQ18,AQ22,AQ30,AQ37,AQ45,AQ55) meet your need for pure oil-free air. They deliver best-in-class energy efficiency for applications that demand reliability and purity.

Enquiry
SKU: 8 Category: Tag: Brand:
Capacity FAD l/s
21.9 l/s - 161.7 l/s
Capacity FAD
198 m³/h - 546 m³/h
Capacity FAD m³/min
3.3 m³/min - 9.1 m³/min
Working Pressure
7.25 bar(g) - 12.75 bar(g)
Installed motor power
15 kW - 55 kW
Country of Origin
BE
HS Code
8414809090
Lead Time
12-16 Weeks
MOQ
1 Unit
Packaging
Wooden Crate
Product Quality
100% Genuine, 100% Original, Brand New
Transaction Mode
CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA
Guaranteed Safe Checkout

The Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors meet your need for pure oil-free air. They deliver best-in-class energy efficiency for applications that demand reliability and purity.

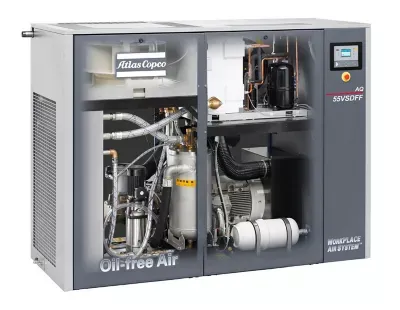

AQ Water Injected Screw Compressor 100% safe, high quality air

Atlas Copco’s AQ oil-free compressors eliminate the risks of oil contamination. Whether your activities are in pharmaceutical production, food & beverage, critical electronics or in a similarly exacting industry, air quality is paramount for your end product and production process.

Certified
Enjoy lower operating and maintenance costs with an ISO-8573-1 CLASS 0 (2010) certified compressor.

Zero risk
CLASS 0 means zero risk of contamination; zero risk of damaged or unsafe products; zero risk of losses from operational downtime.

AQ Water Injected Screw Compressors

The AQ eliminates the risk of contamination with 100% oil-free air for applications that require the highest levels of purity like – medical – pharmaceutical production – food production – critical electronics The water-injected screw compressors, water-cooled or air-cooled, meet your needs for quality air with high-pressure capability and energy efficiency.

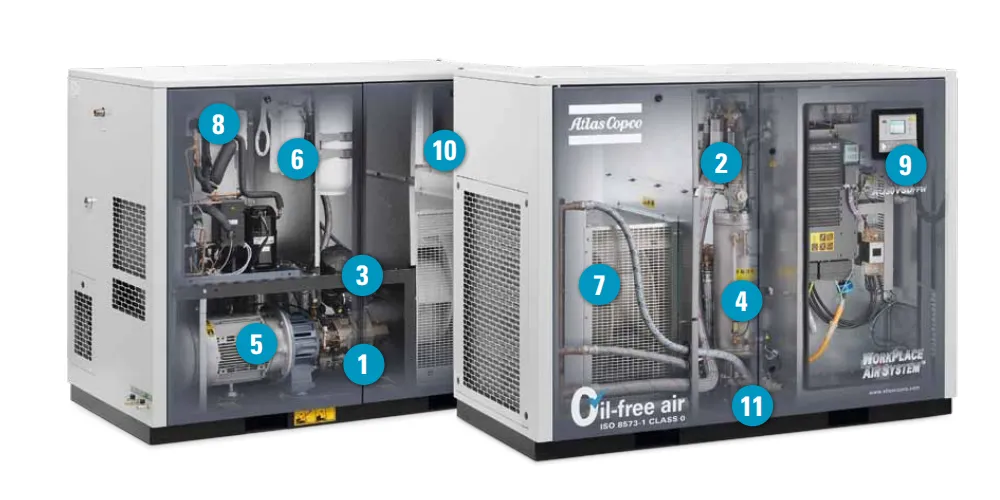

Atlas Copco AQ 15-55 VSD AQ 30-55 Oil-free Compressor Components

①Water-injected screw element

• Highly energy-efficient thanks to low temperatures.
• Water-lubricated, grease-free bearings.
• In-house design and manufacturing.
• Working pressure up to 13 bar.

 ②Water filter

• Ensuring a constant supply of clean water.
• The filtration capability equals 10 micron throughout the filter’s lifetime.
③Heavy-duty air filter

• Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
• Differential inlet pressure for proactive maintenance while minimizing pressure drop.

 ④Separator vessel

• Stainless steel water separator vessel for separation via centrifugal and gravity forces.
• Three sensors included for precise water regulation.
⑤Induction motor

• IP55 induction motor, flange-mounted for perfect alignment.
• Combined with direct driven arrangement for superior energy efficiency.

 ⑥Reverse osmosis system

The built-in reverse osmosis system provides a reliable supply of
high quality water, ensuring autonomy and continuous operation.
⑦Air-cooled fan and water-cooler

• Air and water-cooled variants are available throughout the range.
• Small footprint and installation thanks to built-in heat exchangers.
• Water-cooled units provide a continuous air temperature at the dryer inlet of less than 55°C (131°F).

 ⑧Integrated highly efficient dryer

• Excellence in air quality.
• 50% reduction in energy consumption compared to traditional dryers.
• Zero ozone depletion.
⑨Elektronikon® Graphic

Advanced Elektronikon® Graphic control and monitoring system, designed for integration in a (remote) process control system.

 ⑩Sound insulated canopy

No separate compressor room is required as the sound insulated canopy allows for installation in most working environments.
11.Electronic no-loss water drain

• Ensures constant removal of condensate.
• Manual integrated bypass for effective condensate removal in case of power failure.
• Integrated with compressor’s Elektronikon® with warning/alarm features.

 Electronic no-loss water drain

Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors Flow Diagram

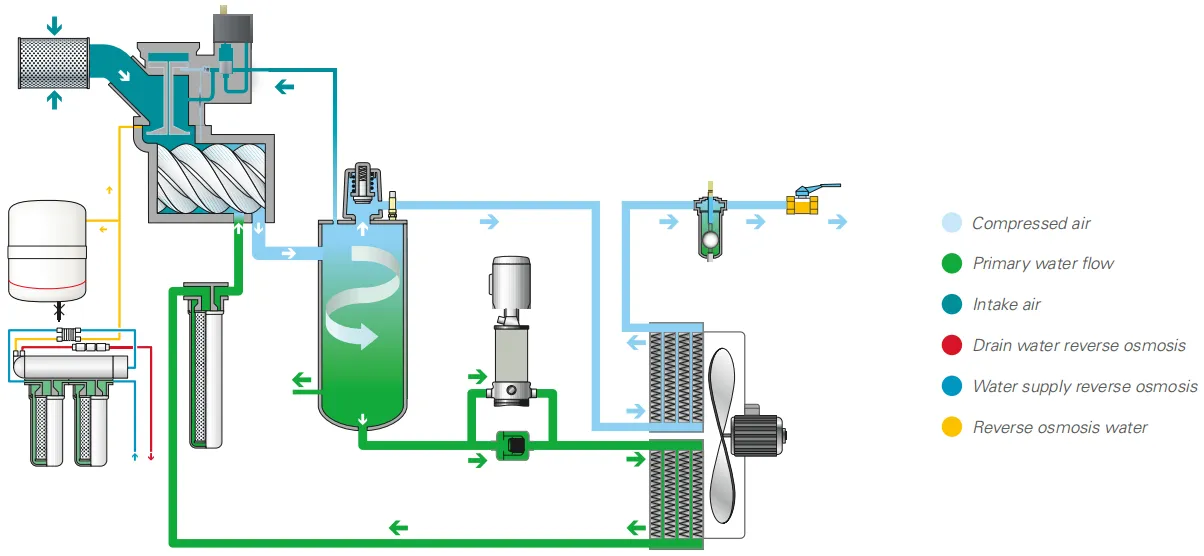

Flow diagram (air-cooled)

AQ air-cooled pack Flow diagram

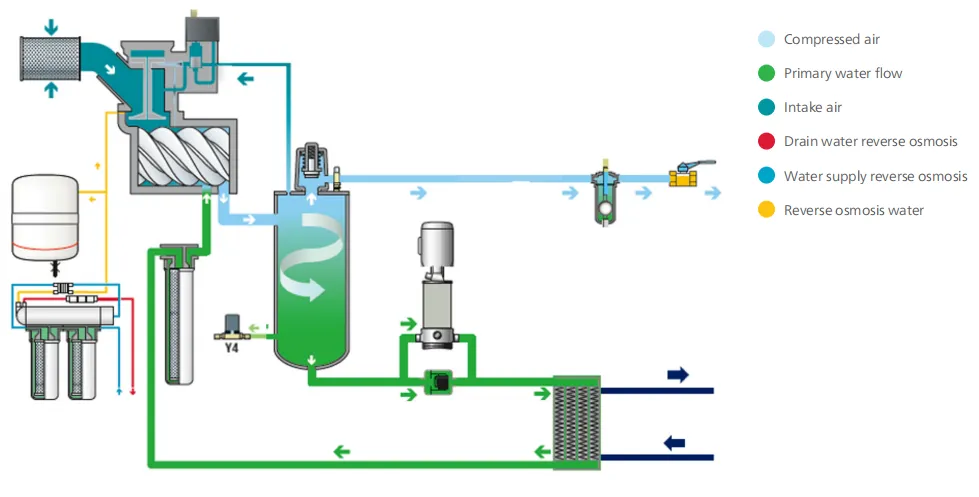

Flow diagram (water-cooled)

Flow-diagram-water-cooled

Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors Technical Specification

AQ 30-55 (50 HZ VERSIONS)

COMPRESSOR TYPE Max. working pressure(bar(e)/psig) Capacity FAD1 Installed motor power Noise level2 Weight (kg/lbs)
Pack Full Feature I/s m³/min cfm kW hp dB(A) Pack Full Feature
Air-cooled
AQ 30 7.5 7.5/109 7.25/105 81.8 4.9 173.4 30 40 68 1226/2703 1320/2910
10 10/145 9.75/141 70.6 4.2 149.7 30 40 68 1226/2703 1320/2910
13 13/189 12.75/185 61.0 3.7 129.3 30 40 68 1226/2703 1320/2910
AQ 37 7.5 7.5/109 7.25/105 102.3 6.1 216.9 37 50 69 1320/2910 1395/3075
10 10/145 9.75/141 88.5 5.3 187.6 37 50 69 1320/2910 1395/3075
13 13/189 12.75/185 75.4 4.5 159.8 37 50 69 1320/2910 1395/3075
AQ 45 7.5 7.5/109 7.25/105 122.2 7.3 259.1 45 60 71 1321/2912 1416/3122
10 10/145 9.75/141 100.8 6.0 213.7 45 60 71 1321/2912 1416/3122
13 13/189 12.75/185 88.2 5.3 187.0 45 60 71 1321/2912 1416/3122
AQ 55 7.5 7.5/109 7.25/105 138.6 8.3 293.8 55 75 72 1378/3038 1497/3300
10 10/145 9.75/141 119.3 7.2 252.9 55 75 72 1378/3038 1497/3300
13 13/189 12.75/185 102.1 6.1 216.5 55 75 72 1378/3038 1497/3300
Water-cooled
AQ 30 7.5 7.5/109 7.25/105 88.1 5.3 186.8 30 40 65 1121/2471 1215/2679
10 10/145 9.75/141 70.8 4.2 150.1 30 40 65 1121/2471 1215/2679
13 13/189 12.75/185 54.7 3.3 116.0 30 40 65 1121/2471 1215/2679
AQ 37 7.5 7.5/109 7.25/105 106.8 6.4 226.4 37 50 66 1193/2630 1290/2844
10 10/145 9.75/141 90.9 5.5 192.7 37 50 66 1193/2630 1290/2844
13 13/189 12.75/185 72.6 4.4 153.9 37 50 66 1193/2630 1290/2844
AQ 45 7.5 7.5/109 7.25/105 128.2 7.7 271.8 45 60 67 1216/2681 1313/2895
10 10/145 9.75/141 107.6 6.5 228.1 45 60 67 1216/2681 1313/2895
13 13/189 12.75/185 89.6 5.4 190.0 45 60 67 1216/2681 1313/2895
AQ 55 7.5 7.5/109 7.25/105 152.4 9.1 323.1 55 75 68 1273/2806 1392/3069
10 10/145 9.75/141 130.8 7.8 277.3 55 75 68 1273/2806 1392/3069
13 13/189 12.75/185 108.7 6.5 230.4 55 75 68 1273/2806 1392/3069

(1) Unit performance measured according to ISO1217 Annex C, Edition 4, 2009.
(2) Mean sound level according to ISO2151, uncertainty 3 dB(A).

Reference pressure conditions:
– Absolute inlet pressure 1 bar (14.5 psi).
– Intake air temperature 20°C (68°F).

FAD is measured at the following working pressure:
– 7.5 bar versions at 7 bar.
– 10 bar versions at 9.5 bar.
– 13 bar versions at 12.5 bar.

AQ 30-55 (60 HZ VERSIONS)

COMPRESSOR TYPE Max. working pressure(bar(e)/psig) Capacity FAD1 Installed motor power Noise levelF Weight (kg/lbs)
Pack Full Feature I/s  m³/min cfm kW hp dB(A) Pack Full Feature
Air-cooled
AQ 30 7.4 7.4/107 7.15/104 86.4 5.2 183.2 30 40 68 1226/2703 1320/2910
9.1 9.1/132 8.85/128 81.1 4.9 171.9 30 40 68 1226/2703 1320/2910
10.8 10.8/157 10.55/153 70.9 4.3 150.3 30 40 68 1226/2703 1320/2910
12.5 12.5/181 12.25/178 66.2 4.0 140.3 30 40 68 1226/2703 1320/2910
AQ 37 7.4 7.4/107 7.15/104 103.5 6.2 219.4 37 50 69 1320/2910 1395/3075
9.1 9.1/132 8.85/128 89.7 5.4 190.2 37 50 69 1320/2910 1395/3075
10.8 10.8/157 10.55/153 85.5 5.1 181.3 37 50 69 1320/2910 1395/3075
12.5 12.5/181 12.25/178 81.3 4.9 172.4 37 50 69 1320/2910 1395/3075
AQ 45 7.4 7.4/107 7.15/104 123.1 7.4 261.0 45 60 71 1321/2912 1416/3122
9.1 9.1/132 8.85/128 106.6 6.4 226.0 45 60 71 1321/2912 1416/3122
10.8 10.8/157 10.55/153 101 6.1 214.1 45 60 71 1321/2912 1416/3122
12.5 12.5/181 12.25/178 96 5.8 203.5 45 60 71 1321/2912 1416/3122
AQ 55 7.4 7.4/107 7.15/104 145.5 8.7 308.5 55 75 72 1378/3038 1497/3300
9.1 9.1/132 8.85/128 120.6 7.2 255.7 55 75 72 1378/3038 1497/3300
10.8 10.8/157 10.55/153 122.1 7.3 258.9 55 75 72 1378/3038 1497/3300
12.5 12/181 12.25/178 111.1 6.7 235.5 55 75 72 1378/3038 1497/3300
Water-cooled
AQ 30 7.4 7.4/107 7.15/104 92.5 5.6 196.1 30 40 65 1121/2471 1215/2679
9.1 9.1/132 8.85/128 82.4 4.9 174.7 30 40 65 1121/2471 1215/2679
10.8 10.8/157 10.55/153 70.1 4.2 148.5 30 40 65 1121/2471 1215/2679
12.5 12.5/181 12.25/178 61.3 3.7 130.0 30 40 65 1121/2471 1215/2679
AQ 37 7.4 7.4/107 7.15/104 110.9 6.7 235.1 37 50 66 1193/2630 1290/2844
9.1 9.1/132 8.85/128 92.7 5.6 196.5 37 50 66 1193/2630 1290/2844
10.8 10.8/157 10.55/153 87.2 5.2 184.9 37 50 66 1193/2630 1290/2844
12.5 12.5/181 12.25/178 80.4 4.8 170.3 37 50 66 1193/2630 1290/2844
AQ 45 7.4 7.4/107 7.15/104 133.7 8.0 283.4 45 60 67 1216/2681 1313/2895
9.1 9.1/132 8.85/128 114.8 6.9 243.4 45 60 67 1216/2681 1313/2895
10.8 10.8/157 10.55/153 103.9 6.2 220.3 45 60 67 1216/2681 1313/2895
12.5 12.5/181 12.25/178 97.5 5.9 206.7 45 60 67 1216/2681 1313/2895
AQ 55 7.4 7.4/107 7.15/104 161.4 9.7 342.2 55 75 68 1273/2806 1392/3069
9.1 9.1/132 8.85/128 132.4 8.0 280.7 55 75 68 1273/2806 1392/3069
10.8 10.8/157 10.55/153 131.2 7.9 278.1 55 75 68 1273/2806 1392/3069
12.5 12/181 12.25/178 118.4 71 250.9 55 75 68 1273/2806 1392/3069

AQ 15-55 VSD (50/60 HZ VERSIONS)

Compressor type Max. working pressure (bar(e)/psig) Capacity FAD* Installed motor power Noise level** Weight (kg/lbs)
Pack Full Feature I/s m³/min cfm kW hp dB(A) Pack Full Feature
Air-cooled
AQ 15 VSD 13/188 12.75/185 22-47 1.3-2.8 47-100 15 20 67 650/1433 700/1543
AQ 18 VSD 13/188 12.75/185 22-54 1.3-3.2 47-114 18 25 69 650/1433 700/1543
AQ 22 VSD 13/188 12.75/185 22-66 1.3-4.0 47-140 22 30 70 740/1631 800/1764
AQ 30 VSD 13/188 12.75/185 22-83 1.3-5.0 47-176 30 40 72 740/1631 810/1786
AQ 37 VSD 13/188 12.75/185 39-108 2.4-6.3 83-228 37 50 69 1300/2866 1410/3108
AQ 45 VSD 13/188 12.75/185 40-130 2.4-7.6 86-275 45 60 72 1300/2866 1410/3108
AQ 55 VSD 13/188 12.75/185 40-155 2.4-9.1 86-329 55 75 75 1300/2866 1410/3108
Water-cooled
AQ 15 VSD 13/188 12.75/185 22-47 1.3-2.8 47-100 15 20 67 542/1195 592/1305
AQ 18 VSD 13/188 12.75/185 22-54 1.3-3.2 47-114 18 25 69 542/1195 592/1305
AQ 22 VSD 13/188 12.75/185 22-66 1.3-4.0 47-140 22 30 70 632/1393 692/1526
AQ 30 VSD 13/188 12.75/185 22-83 1.3-5.0 47-176 30 40 72 632/1393 702/1548
AQ 37 VSD 13/188 12.75/185 42-113 2.5-6.6 89-239 37 50 66 1186/2614 1296/2857
AQ 45 VSD 13/188 12.75/185 42-135 2.5-7.9 89-286 45 60 69 1186/2614 1296/2857
AQ 55 VSD 13/188 12.75/185 42-160 2.5-9.5 89-339 55 75 72 1186/2614 1296/2857

(1) Unit performance measured according to ISO1217 Annex E, Edition 4, 2009.
(2) Mean sound pressure level according to ISO2151, uncertainty 3 dB(A).

Dimensions

Dimensions Air-cooled Water-cooled
L (mm) W (mm) H (mm) L (mm) W (mm) H (mm)
AQ 15-30 VSD 1976 974 1500 1976 974 1500
AQ 37-55 VSD 2440 970 1830 2440 970 1830

Brochure

If you need Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors brochure, please click the link below to view or download it.

Atlas Copco AQ 15-55 VSDAQ 30-55 Oil-free Compressors_antwerp_leaflet_EN_2935087845

Weight 1000.00 kg
Dimensions 200 × 150 × 100 cm
Capacity FAD l/s

21.9 l/s – 161.7 l/s
Capacity FAD

198 m³/h – 546 m³/h
Capacity FAD m³/min

3.3 m³/min – 9.1 m³/min
Working Pressure

7.25 bar(g) – 12.75 bar(g)
Installed motor power

15 kW – 55 kW
Country of Origin

BE
HS Code

8414809090
Lead Time

12-16 Weeks
MOQ

1 Unit
Packaging

Wooden Crate
Product Quality

100% Genuine, 100% Original, Brand New
Transaction Mode

CFR, CIF, CIP, CPT, DAP, DDP, EXW, FCA

1 review for Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors

  1. 5
    (1 customer review)
    100% of customers recommend this product.
    5 Stars100%4 Stars0%3 Stars0%2 Stars0%1 Star0%
  2. Avatar of Nick

    Nick –

    Highly recommended.

    The AQ 37 compressor we bought from Sichuan Sykes has proven to be a reliable and energy-efficient solution. It delivers consistent oil-free air, which is critical for our operations. Maintenance has been minimal, and performance remains stable. The supplier handled everything professionally, from inquiry to delivery.

    0 of 0 found this review helpful
Add a review

Your email address will not be published. Required fields are marked *

You may also like…

Atlas Copco ZR 90 VSD FF Compressors

Atlas Copco ZR/ZT 55-90 VSD FF Oil-free Air Compressors

$20,000.00 Enquiry
Atlas Copco FD Refrigerant Air Dryers

Atlas Copco FD 5-4000 VSD Refrigerant Air Dryers

$3,000.00 Enquiry
Atlas Copco GA 90L-500 Oil-injected Air Compressors

Atlas Copco GA 90L-500 Oil-injected Air Compressors

$10,000.00 Enquiry
Atlas Copco GR 110-200 Application

Atlas Copco GR 110-200 (FF) Oil-injected Air Compressors

$30,000.00 Enquiry
Atlas Copco ZRZT 15-55 (VSD) Oil-free Tooth Compressors Application

Atlas Copco ZR/ZT 15-55 (VSD) Oil-free Tooth Compressors

$15,000.00 Enquiry
Atlas Copco G 2-90 Oil-injected Screw Compressors

Atlas Copco G 2-90 Oil-injected Screw Compressors

$2,000.00 Enquiry

Related products

Autumn Journey

Autumn Journey

$17.00 Enquiry
The Best Beaches

The Best Beaches

$22.00 Enquiry
SOLD OUTNature Misticism

Nature Misticism

$26.00 Enquiry
Economic Opportunity

Economic Opportunity

$15.00 Enquiry
The Future With Crypto

The Future With Crypto

$28.00 Enquiry
Make Paying Easier

Make Paying Easier

$27.00 Enquiry
Atlas Copco AQ 15-55 VSDAQ 30-55 Oil-free Compressors Index
Atlas Copco AQ 15-55 VSD/AQ 30-55 Oil-free Compressors

$5,000.00
