How to Choose the Right Air Dryer?

Compressed air is a vital energy source in modern industry, but the compression process inevitably introduces moisture. As air is compressed, the water vapor it contains condenses into liquid water, which then travels through the system. Without proper drying, this moisture can cause corrosion, contamination, blockages, and even equipment failure. That is why choose the right air dryer is essential for ensuring system reliability, reducing maintenance costs, and protecting both equipment and final products.

This article provides a comprehensive overview of air dryers, including their importance, main types, key performance indicators, and how to choose the right air dryer. It expands on core principles from Atlas Copco’s guidance while presenting them in a clear and practical way.

Why Dry Compressed Air Matters

During compression, the relative humidity of air increases, leading to condensation as the air cools. If this moisture is not removed, it can create serious operational issues:

Moisture in compressed air systems leads to corrosion of pipelines and components, causing long-term damage and reducing system lifespan. It can also freeze in low-temperature environments, leading to valve blockages or system failure. In sensitive industries such as food, beverage, pharmaceuticals, and electronics, even small amounts of water can compromise product quality or result in rejected batches.

In addition, moisture increases maintenance requirements and can lead to unexpected downtime. In many cases, installing an air dryer is not just an option—it is a necessity for maintaining consistent production quality and protecting assets.

Main Types of Air Dryers

Air dryers are generally categorized into three main types based on their operating principles: refrigerated dryers, desiccant dryers, and membrane dryers. Each type serves different applications depending on the required air quality and operating conditions.

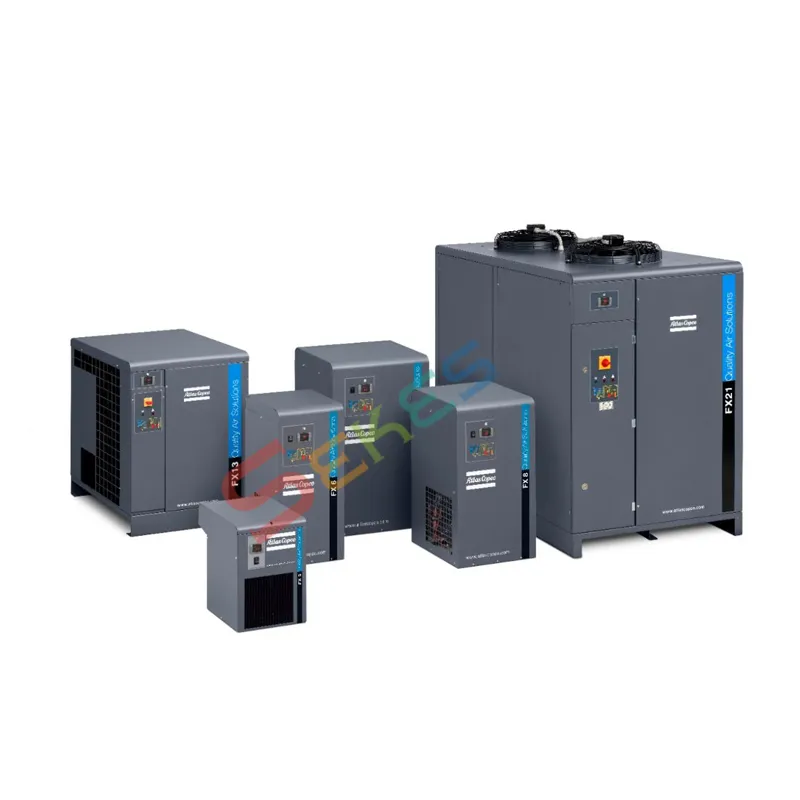

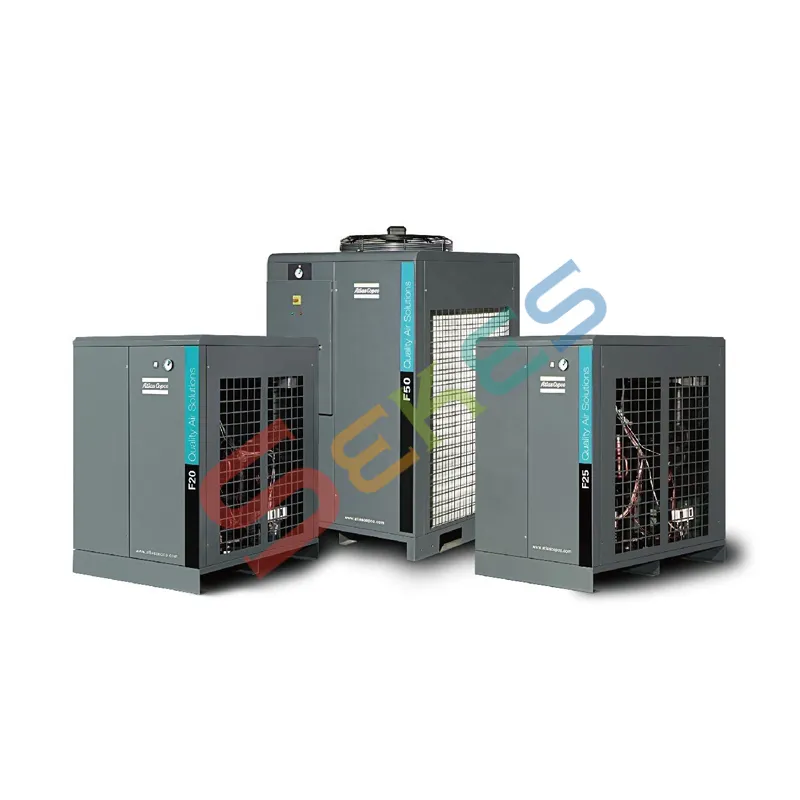

Refrigerated Air Dryers

Refrigerated dryers are the most commonly used type of air dryer in industrial applications. They work by cooling compressed air to a low temperature, causing moisture to condense into liquid form, which is then removed from the system.

These dryers typically achieve a pressure dew point (PDP) of around +3°C to +7°C, which is sufficient for most general-purpose industrial applications.

There are three main variations:

Non-cycling refrigerated dryers operate continuously and maintain a constant cooling process. They are simple, reliable, and cost-effective but may be less energy-efficient when air demand fluctuates.

Cycling refrigerated dryers adjust their operation based on air demand. They can turn on and off or reduce cooling capacity when full output is not needed, making them more energy-efficient than non-cycling models.

Variable Speed Drive (VSD) refrigerated dryers use advanced technology to adjust motor speed according to demand. This results in the highest energy efficiency and optimal performance, especially in systems with variable load conditions.

Refrigerated dryers are widely used in general industrial environments where moderate air dryness is required and energy efficiency is a consideration.

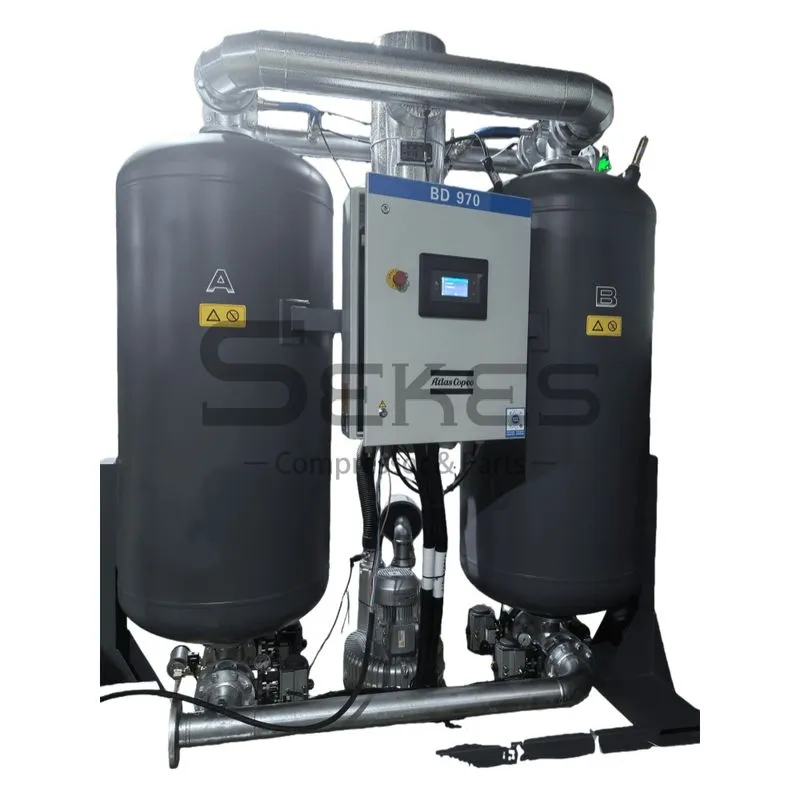

Desiccant Air Dryers

Desiccant dryers are used when extremely dry air is required. They operate using moisture-absorbing materials such as activated alumina or molecular sieves, which remove water vapor from the air.

These dryers can achieve very low pressure dew points, typically down to -40°C or even -70°C, making them suitable for critical applications.

There are several types of desiccant dryers:

Heatless (no-heat) dryers use a portion of the compressed air for regeneration. While they are relatively simple and cost-effective upfront, they consume more compressed air, which increases operating costs.

Heated purge dryers use an external or internal heat source to regenerate the desiccant. This reduces compressed air consumption and improves energy efficiency.

Blower purge dryers use ambient air heated by a blower instead of compressed air for regeneration. This design minimizes air loss and offers the lowest operating costs, although initial investment is higher.

Desiccant dryers are commonly used in industries that require ultra-dry air, such as pharmaceuticals, food processing, electronics manufacturing, and outdoor applications in cold climates.

Membrane Air Dryers

Membrane dryers use a selective permeation process to remove moisture from compressed air. The air passes through a membrane, where water vapor is allowed to diffuse out while dry air is retained.

These dryers have no moving parts and require no electrical power, making them extremely simple and low-maintenance. They are ideal for point-of-use applications and small-scale drying needs.

However, membrane dryers are generally not suitable for large systems or applications requiring extremely low dew points. Their capacity is limited, but their simplicity and reliability make them highly valuable in specific use cases.

Understanding Pressure Dew Point (PDP)

Pressure Dew Point (PDP) is the most important performance parameter when selecting an air dryer. It indicates the temperature at which moisture in compressed air will begin to condense at a given pressure.

Higher PDP values (such as +3°C) are suitable for general industrial use, while lower PDP values (such as -40°C or lower) are required for sensitive applications where even minimal moisture must be avoided.

When selecting a dryer, it is crucial to ensure that it can achieve the required PDP under actual operating conditions—not just under ideal laboratory conditions.

Key Factors for Selecting the Right Dryer

Choosing the right air dryer requires a careful evaluation of several important factors:

Flow Rate (FAD)

The dryer must be sized according to the actual air demand, typically measured as Free Air Delivery (FAD). Proper sizing ensures that the dryer can handle peak loads without compromising performance.

Operating Conditions

Environmental factors such as ambient temperature, inlet air temperature, and system pressure all affect dryer performance. These conditions must be considered during selection.

Safety Margin

It is recommended to include a safety margin (typically 10–15%) to account for fluctuations in demand or future expansion of the system.

Dew Point Requirements

Different applications require different levels of air dryness. Selecting a dryer that meets or exceeds the required dew point is essential for system reliability and product quality.

Energy Efficiency and Lifecycle Cost

The initial purchase price of an air dryer is only a small portion of its total life cycle cost. Energy consumption often represents the largest expense over time.

For example, VSD refrigerated dryers can significantly reduce energy usage by adjusting output to match demand. Similarly, heated and blower purge desiccant dryers minimize compressed air losses, resulting in lower operating costs over the long term.

Membrane dryers, although limited in capacity, offer extremely low energy and maintenance costs for localized applications.

When selecting a dryer, it is important to evaluate the total cost of ownership (TCO), which includes purchase cost, energy consumption, maintenance, and operational efficiency.

Application-Based Selection

Different industries require different types of air dryers:

Refrigerated dryers are suitable for general industrial applications such as manufacturing and packaging. Desiccant dryers are used in industries requiring extremely dry air, such as pharmaceuticals, food processing, and electronics. Membrane dryers are ideal for small-scale, localized applications where maintenance-free operation is important.

Matching the dryer type to the application ensures optimal performance, efficiency, and cost-effectiveness.

Conclusion

Selecting the right air dryer is a critical step in designing an efficient and reliable compressed air system. Moisture is an unavoidable byproduct of compression, but with the right drying solution, its negative effects can be effectively controlled.

By understanding the different types of dryers, evaluating pressure dew point requirements, and considering both operating conditions and lifecycle costs, businesses can make informed decisions that improve system performance and reduce long-term expenses.

Ultimately, the best air dryer is not necessarily the cheapest one, but the one that delivers the most value over its entire lifecycle while meeting the specific demands of the application.
